Slam Shut Off Valves
of Dilock
| Features | Values |
|---|---|
| Design pressure* (PS¹) | up to 2 MPa up to 20 barg |
| Ambient temperature* (TS¹) | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet gas temperature* | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet pressure (MAOP / Pumax¹) | from 0.1 MPa to 2 MPa from 1 bar to 20 barg |
| Over pressure setting range (OPSO) | from 3 kPa to 0.55 MPa from 30 mbar to 5.5 barg |
| Under pressure setting range (UPSO) | from 0.6 kPa to 0.35 MPa from 6 mbar to 3.5 barg |
| Available accessories | Limit switch, remote tripping |
| Accuracy class (AG¹) | up to 5 for OPSO (depending on working conditions) up to 10 for UPSO (depending on working conditions) |
| Nominal size (DN¹²) |
Dilock 108: DN 25 | 1"; DN 40 | 1"1/2; DN 50 | 2" Dilock 507-512: DN 25x40 | 1"x1"1/2; DN 25x25 | 1"x1" |
| Connections |
Dilock 108: Class 150 RF according to ASME B16.5; PN16 according to ISO 7005;
Threaded Rp according to EN10226 or NPT according to ASME B1.20.1 (only for DN 50 | 2") Dilock 507-512: Threaded Rp according to EN10226 or NPT according to ASME B1.20.1 |
| End to end dimensions | EN 14382 |

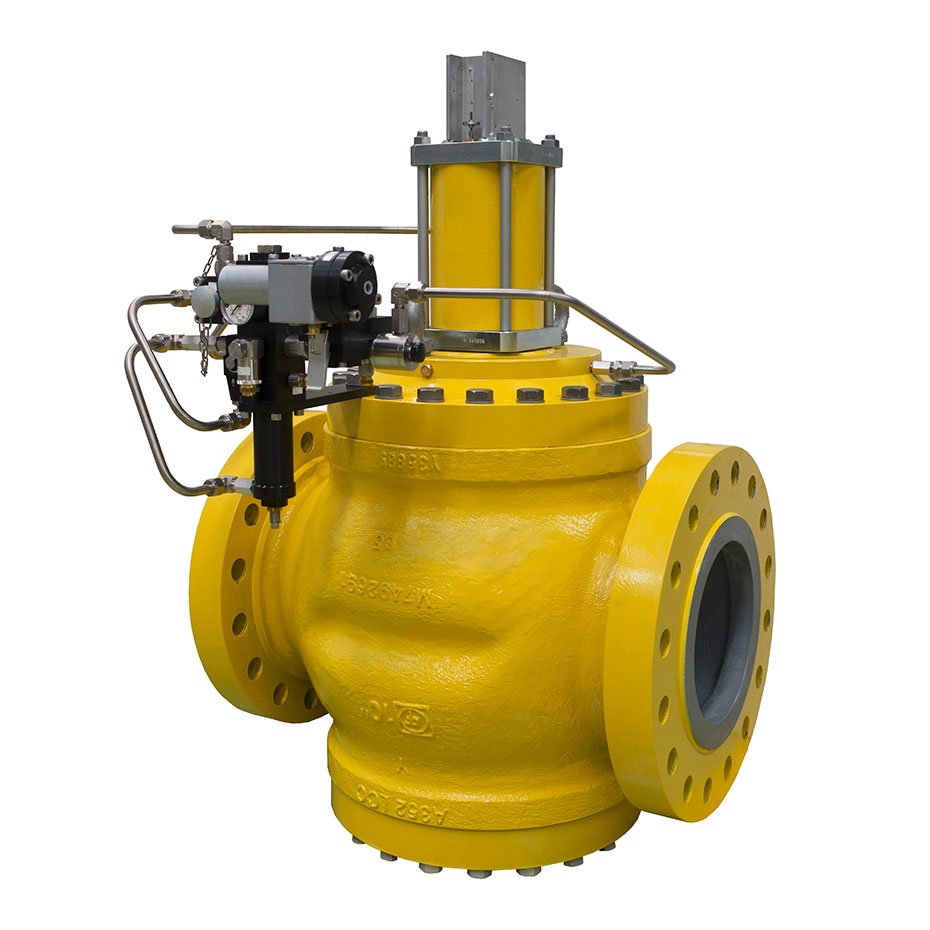

of HBC 975
| Features | Values |
|---|---|
| Design pressure* | up to 10.2 MPa up to 102 barg |
| Ambient temperature* | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet gas temperature range* | from -20 °C to +60 °C from -4 °F to +140 °F |
| Available Accessories | Limit switch, remote tripping |
| Maximum inlet pressure | 10 MPa 100 barg |
| Accuracy class AG | up to 2.5 for OPSO (depending on working conditions) up to 2.5 for UPSO (depending on working conditions) |
| Over pressure setting range (OPSO) | from 0.02 MPa to 9 MPa from 0.2 barg to 90 barg |
| Under pressure setting range (UPSO) | from 0.02 MPa to 9 MPa from 0.2 barg to 90 barg |
| Nominal dimensions DN | DN 100 / 4"; DN 150 / 6"; DN 200 / 8"; DN 250 / 10"; DN 300 / 12" |
| Connections* | ANSI 150, 300 and 600 according to ASME B16.5 and PN 16 according EN 1092 |
| End to end dimensions | according to EN 334, EN 14382 |

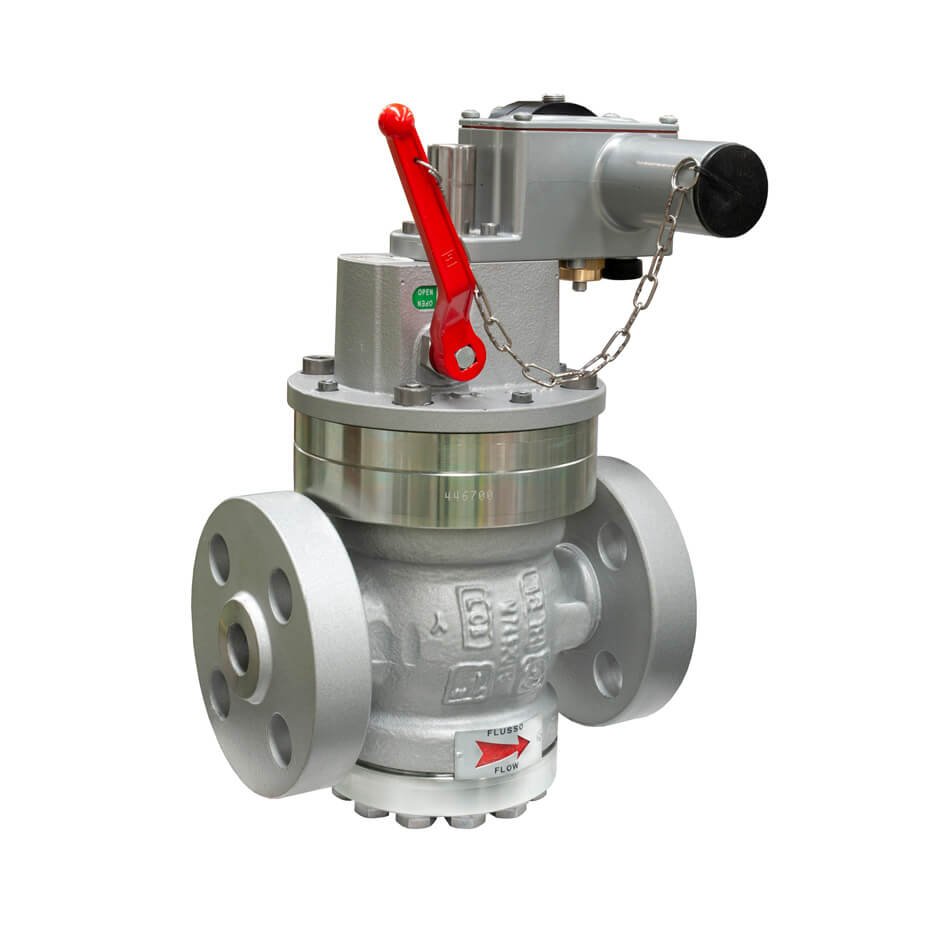

of SBC 187
| Features | Values |
|---|---|
| Design pressure* | up to 25 MPa up to 250 barg |
| Ambient temperature* | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet gas temperature range* | from -20 °C to +60 °C from -4 °F to +140 °F |
| Available Accessories | Limit switch, remote tripping |
| Accuracy class AG | up to 2.5 for OPSO (depending on working conditions) up to 2.5 for UPSO (depending on working conditions) |
| Over pressure setting range (OPSO) | from 0.2 MPa to 9 MPa from 2 barg to 90 barg |
| Under pressure setting range (UPSO) | from 0.02 MPa to 9 MPa from 0.2 barg to 90 barg |
| Nominal dimensions DN | DN 25 / 1" |
| Connections* | ANSI 1500 according to ASME B16.5 |
| End to end dimensions | according to EN 334, EN 14382 |

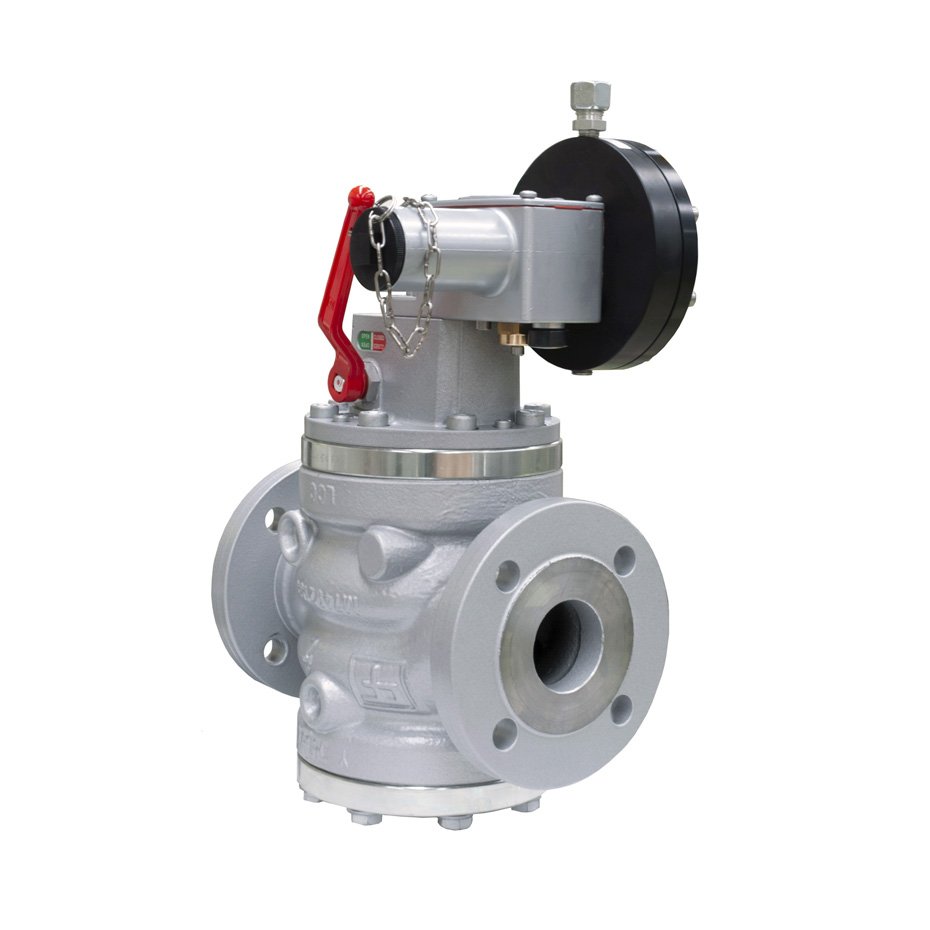

of SBC 782
| Features | Values |
|---|---|
| Design pressure* | up to 10.2 MPa up to 102 barg |
| Ambient temperature* | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet gas temperature range* | from -20 °C to +60 °C from -4 °F to +140 °F |
| Available Accessories | Limit switch, remote tripping |
| Accuracy class AG | up to 2.5 for OPSO (depending on working conditions) up to 2.5 for UPSO (depending on working conditions) |
| Over pressure setting range (OPSO) | from 2 KPa to 9 MPa from 20 mbar to 90 barg |
| Under pressure setting range (UPSO) | from 1 KPa to 9 MPa from 10 mbar to 90 barg |
| Nominal dimensions DN | DN 25 / 1"; DN 50 / 2"; DN 80 / 3"; DN 100 / 4"; DN 150 / 6"; DN 200 / 8"; DN 250 / 10" |
| Connections* | Class 150/300/600 RF / RTJ according to ASME B 16.5 or PN 16/25/40 according to EN 1092-1 |
| End to end dimensions | according to EN 334, EN 14382 |

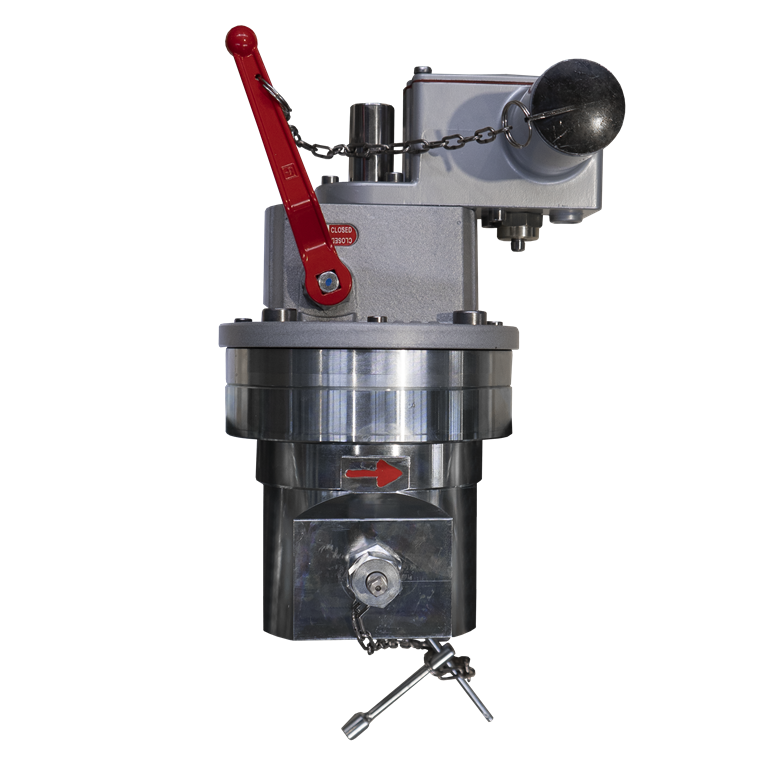

of SBC Mini
| Features | Values |
|---|---|
| Design pressure* | up to 25 MPa up to 250 barg |
| Ambient temperature* | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet gas temperature range* | from -20 °C to +60 °C from -4 °F to +140 °F |
| Available Accessories | Limit switch, remote tripping |
| Accuracy class AG | up to 2.5 for OPSO (depending on working conditions) up to 2.5 for UPSO (depending on working conditions) |
| Over pressure setting range (OPSO) | from 0.2 MPa to 9 MPa from 2 barg to 90 barg |
| Under pressure setting range (UPSO) | from 0.02 MPa to 9 MPa from 0.2 barg to 90 barg |
| Nominal dimensions DN | DN 25 / 1" |
| Connections* | ANSI 1500 according to ASME B16.5 or threaded NPT |
| End to end dimensions | according to EN 334, EN 14382 |

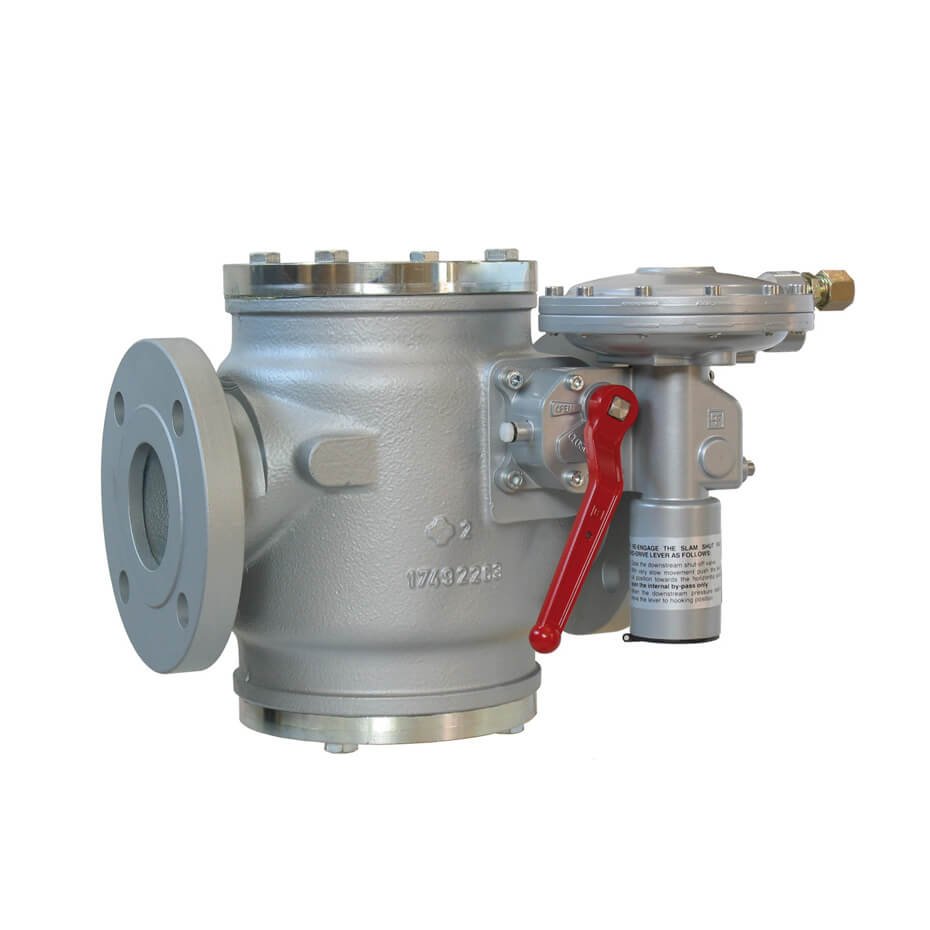

of SCN
| Features | Values |
|---|---|
| Design pressure* | up to 1.6 MPa up to 16 barg |
| Ambient temperature* | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet gas temperature range* | from -20 °C to +60 °C from -4 °F to +140 °F |
| Available Accessories | Limit switch, remote tripping |
| Accuracy class AG | up to 2.5 for OPSO (depending on working conditions) up to 5 for UPSO (depending on working conditions) |
| Over pressure setting range (OPSO) | from 2.5 kPa to 0.5 MPa from 25 mbarg to 5 barg |
| Under pressure setting range (UPSO) | from 1 kPa to 0.3 MPa from 10 mbarg to 3 barg |
| Nominal dimensions DN | DN 25 / 1"; DN 40 / 1"1/2; DN 50 / 2"; DN 65 / 2"1/2; DN 80 / 3"; DN 100 / 4"; DN 150 / 6"; DN 200 / 8" |
| Connections* | Class 150 RF according to ASME B16.5 and PN16 according to ISO 7005 |
| End to end dimensions | EN 14382 |
of SSX 176
| Features | Values |
|---|---|
| Design pressure* | up to 10.2 MPa up to 102 barg |
| Ambient temperature* | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet gas temperature range* | from -20 °C to +60 °C from -4 °F to +140 °F |
| Available Accessories | Limit switch, remote tripping |
| Accuracy class AG | up to 2.5 for OPSO (depending on working conditions) up to 2.5 for UPSO (depending on working conditions) |
| Over pressure setting range (OPSO) | from 0.2 MPa to 9 MPa from 2 barg to 90 barg |
| Under pressure setting range (UPSO) | from 0.005 MPa to 9 MPa from 0.05 barg to 90 barg |
| Nominal dimensions DN | DN 25 / 1"; DN 50 / 2"; DN 80 / 3"; DN 100 / 4"; DN 150 / 6" |
| Connections* | ANSI 150, 300 and 600 according to ASME B16.5 and PN 16 according to EN 1092 |
| End to end dimensions | EN 14382 |
