Relief Valves
of PVS 782
| Features | Values |
|---|---|
| Design pressure* | up to 10.2 MPa up to 102 barg |
| Ambient temperature* | from -20°C to +60°C from -4°F to +140°F |
| Inlet gas temperature range* | from -20°C to +60°C from -4°F to +140°F |
| Available Accessories | Manual testing device (push) |
| Maximum over pressure accuracy | up to 15% |
| Range of relief | from 0.15 MPa to 7.5 MPa from 1.5 barg to 75 barg |
| Nominal dimensions DN | DN 100 / 4” DN 150 / 6” DN 200 / 8” |
| Connections* | ANSI 150, 300, and 600 according to ASME B16.5 and PN 16 according to EN 1092 |
| End to end dimensions | according to EN 334, EN 14382 |

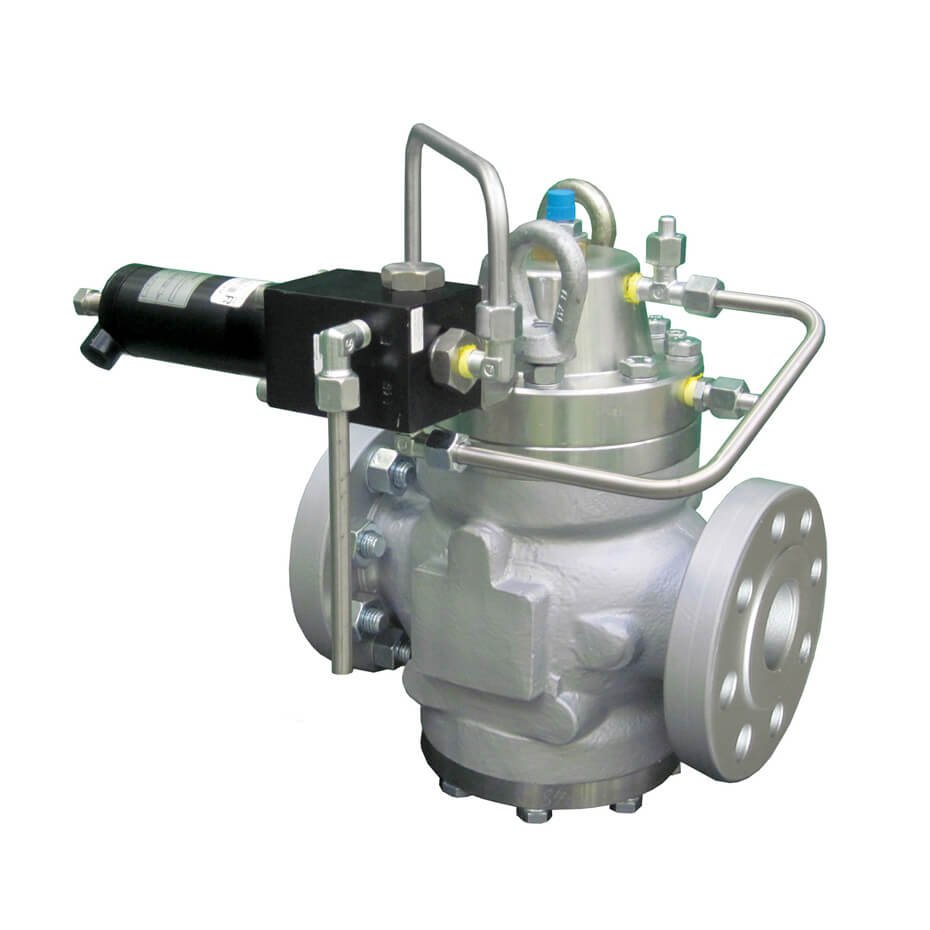

of PVS 803
| Features | Values |
|---|---|
| Design pressure* | up to 10.2 MPa up to 102 barg |
| Ambient temperature* | from -20°C to +60°C from -4°F to +140°F |
| Inlet gas temperature range* | from -20°C to +60°C from -4°F to +140°F |
| Available Accessories | Manual testing device (push) |
| Maximum over pressure accuracy | up to 10% |
| Range of relief | from 0.15 MPa to 7.5 MPa from 1.5 barg to 75 barg |
| Nominal dimensions DN | DN 25 / 1” DN 50 / 2” DN 80 / 3” DN 100 / 4” DN 150 / 6” |
| Connections* | ANSI 150, 300, and 600 according to ASME B16.5 and PN 16 according to EN 1092 |
| End to end dimensions | according to EN 334, EN 14382 |
