High Medium Pressure Regulator

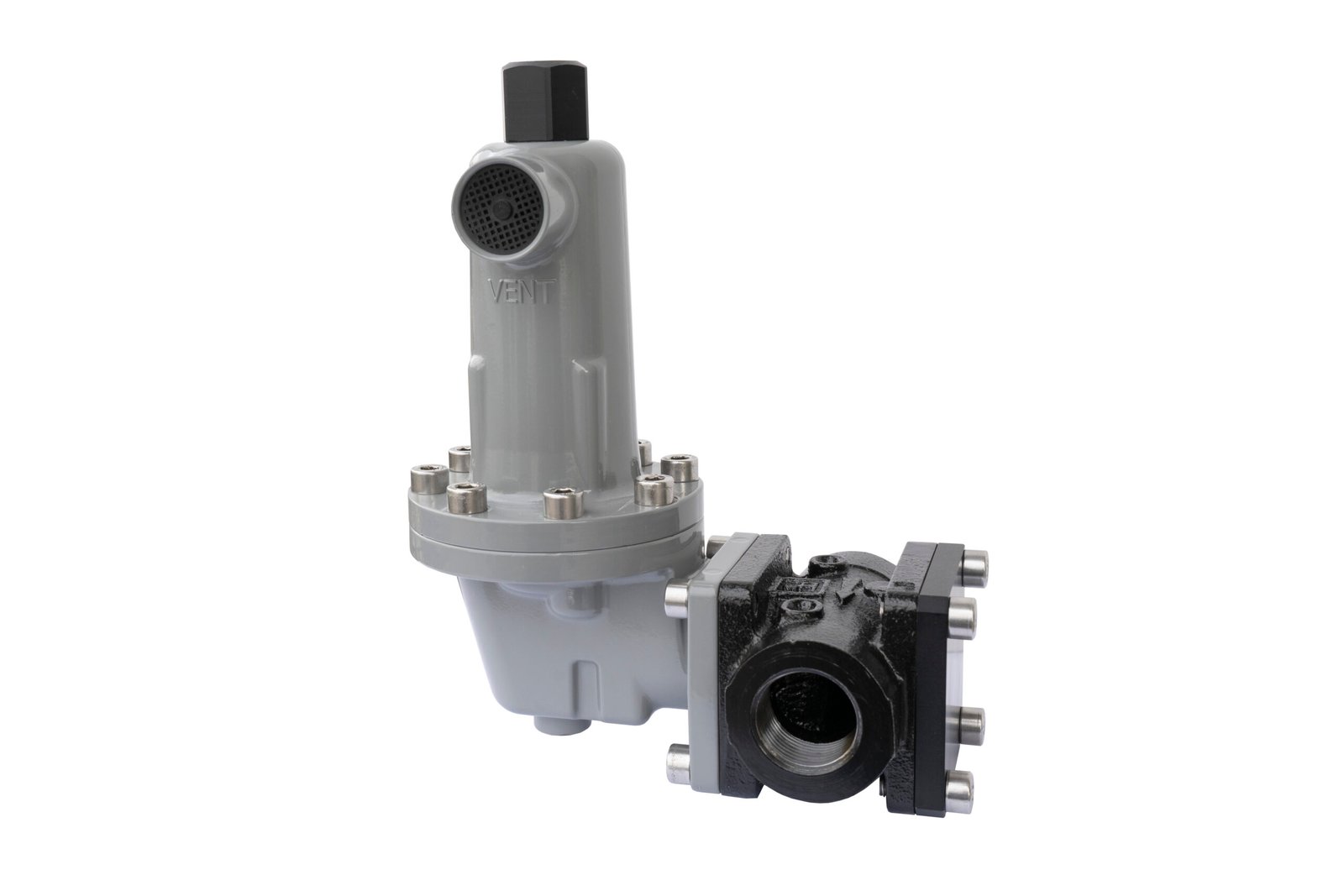

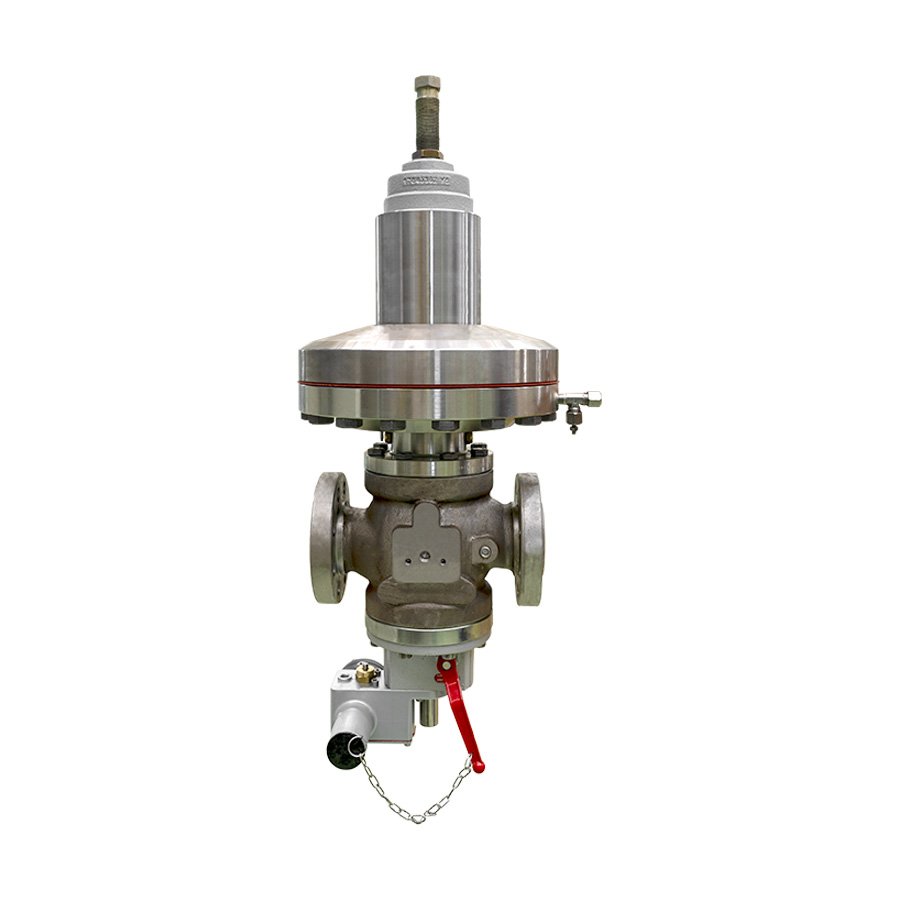

| Features | Values |
|---|---|
| Design pressure (PS / DP) | Up to 10.2 MPa Up to 102 bar |
| Ambient temperature (TS) | -20 °C to +60 °C (-4 °F to +140 °F) |
| Inlet gas temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Inlet pressure (MAOP / Pmax) | 0.05 to 10.0 MPa 0.5 to 100 bar |
| Range of downstream pressure (Wd) | 0.03 to 7.4 MPa 0.3 to 74 bar |
| Available accessories | DB/819 Silencer, LDB/171 Silencer, PM/819 Monitor, SB/82 Slam shut, HB/97 Slam shut |
| Minimum operating differential pressure (Δpmin) | 0.05 MPa 0.5 bar |
| Accuracy class (AC) | Up to 1 |
| Lock-up pressure class (SG) | Up to 2.5 |
| Nominal size (DN) | DN 25 | 1", DN 50 | 2", DN 80 | 3", DN 100 | 4" DN 150 | 6", DN 200 | 8", DN 250 | 10", DN 300 | 12" |
| Connections | Class 150, 300, 600 RF or RTJ according to ASME B16.5 PN16 according to ISO 7005 |
| Features | Values |
|---|---|
| Design pressure | Up to 8.5 MPa Up to 85 barg |
| Ambient temperature | -20 °C to +60 °C -4 °F to +140 °F |
| Inlet gas temperature range | -20 °C to +60 °C -4 °F to +140 °F |
| Inlet pressure range bpu (MAOP) | 0.14 to 8.5 MPa 1.4 to 85 barg |
| Range of downstream pressure Wd | 0.085 to 0.45 MPa 0.85 to 4.5 barg |
| Available Accessories | SB/87 Slam shut |
| Minimum differential pressure | 0.1 MPa 1 barg |
| Accuracy class AC | Up to 5 (depending on working conditions) |
| Lock-up pressure class SG | Up to 10 (depending on working conditions) |
| Nominal dimensions DN | DN 25 / 1” |
| Connections | Class 300 and 600 RF or RTJ according to ASME B16.5 |
| Features | Values |
|---|---|
| Design pressure (PS / DP) | Up to 10.2 MPa Up to 102 bar |
| Ambient temperature (TS) | -20 °C to +60 °C (-4 °F to +140 °F) |
| Inlet gas temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Inlet pressure (MAOP / Pmax) | 0.05 to 10.0 MPa 0.5 to 100 bar |
| Range of downstream pressure (Wd) | 0.03 to 7.4 MPa 0.3 to 74 bar |
| Available accessories | DB/819 Silencer, LDB/171 Silencer, PM/819 Monitor, SB/82 Slam shut, HB/97 Slam shut |
| Minimum operating differential pressure (Δpmin) | 0.05 MPa 0.5 bar |
| Accuracy class (AC) | Up to 1 |
| Lock-up pressure class (SG) | Up to 2.5 |
| Nominal size (DN) | DN 25 | 1", DN 50 | 2", DN 80 | 3", DN 100 | 4" DN 150 | 6", DN 200 | 8", DN 250 | 10", DN 300 | 12" |
| Connections | Class 150, 300, 600 RF or RTJ according to ASME B16.5 PN16 according to ISO 7005 |
| Features | Standard Version | Arctic Version |
|---|---|---|
| Design pressure (PS / DP) | Up to 10.0 MPa Up to 1450 psig |
|
| Ambient temperature (TS) | from -20 °C to +65 °C from -4 °F to +150 °F |
from -40 °C to +65 °C from -40 °F to +150 °F |
| Inlet gas temperature | from -10°C to +60°C from +14°F to +140°F |
from -20°C to +60°C from -4°F to +140°F |
| Inlet pressure (MAOP / Pmax) | from 0.1 to 9.5 MPa from 14.5 to 1378 psig |
|
| Range of downstream pressure (Wd) | from 0.07 to 0.4 MPa from 10 to 58 psig |
|
| Available Accessories | Incorporated slam-shut | |
| Minimum operating differential pressure (Δpmin) | 48 kPa 7 psig |
|

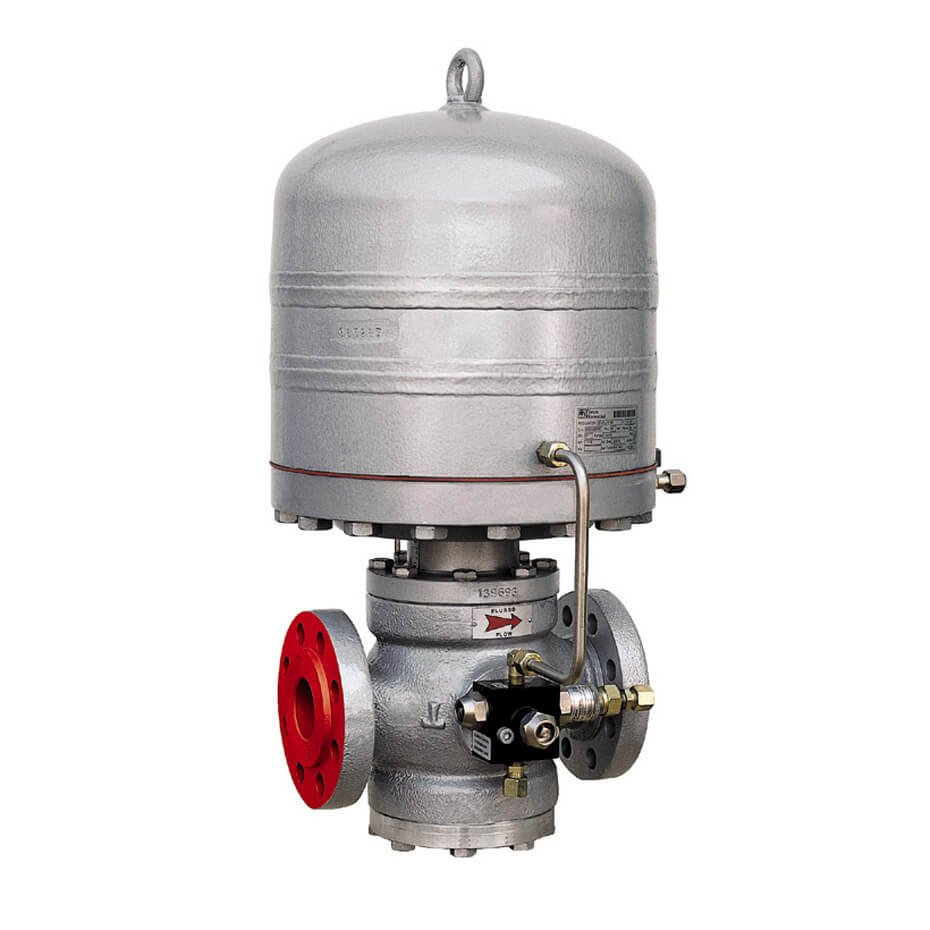

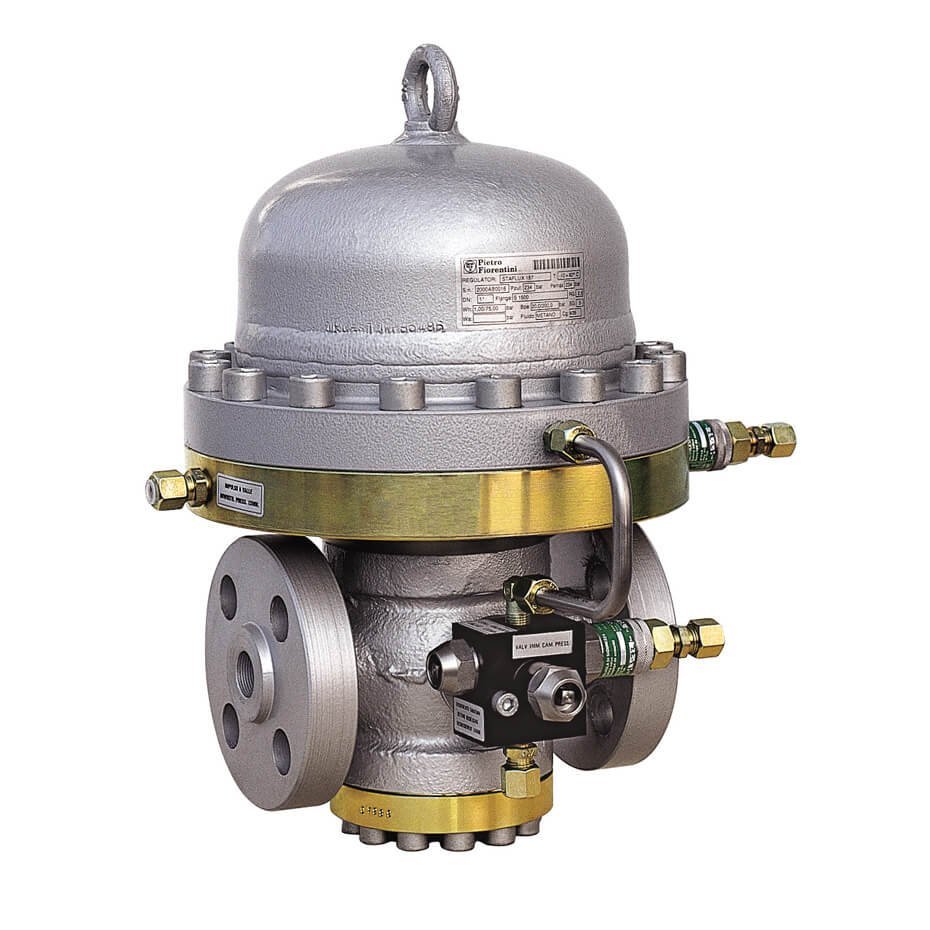

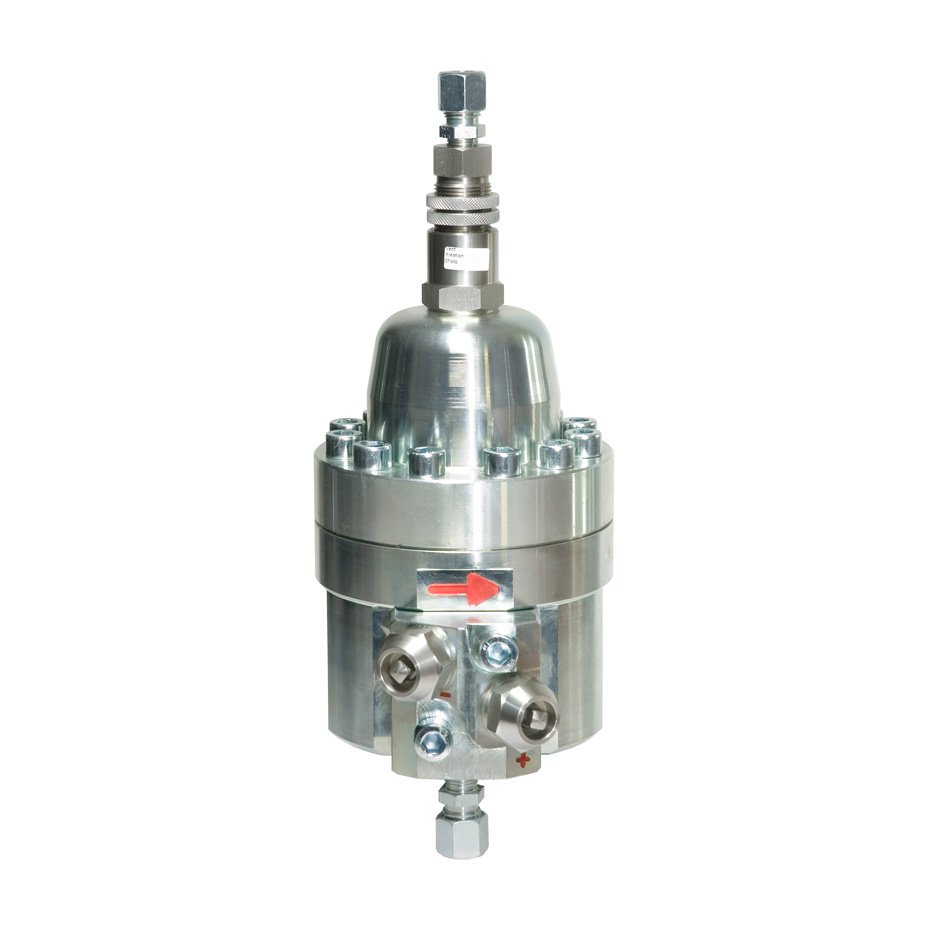

| Accuracy class (AC) | Up to 10 (depending on working conditions) | |
| Lock-up pressure class (SG) | Up to 10 (depending on working conditions) | |
| Nominal size (DN) | DN 50 | 2" | |
| Orifice Sizes | 2" | |
| Connections | Class 300/600 RF / RTJ according to ASME B 16.5 | |
| Features | Values |
|---|---|
| Design pressure | Up to 10.0 MPa Up to 100 barg |
| Ambient temperature | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet gas temperature range | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet pressure range bpu (MAOP) | from 0.2 to 8.5 MPa from 2 to 85 barg |
| Range of downstream pressure (Wd) | from 0.1 to 7.5 MPa from 1 to 75 barg |
| Available Accessories | SB/185 Slam shut |
| Minimum differential pressure | 0.1 MPa 1 barg |
| Accuracy class (AC) | Up to 5 (depending on working conditions) |
| Lock-up pressure class (SG) | Up to 10 (depending on working conditions) |
| Nominal dimensions (DN) | DN 25 / 1"; DN 50 / 2"; DN 80 / 3" |
| Connections | Class 300/600 RF / RTJ according to ASME B 16.5 |
| Features | Values |
|---|---|
| Design pressure | Up to 25.0 MPa Up to 250 barg |
| Ambient temperature | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet gas temperature range | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet pressure range bpu (MAOP) | from 0.2 to 25 MPa from 2 to 250 barg |
| Range of downstream pressure (Wd) | from 0.1 to 7.5 MPa from 1 to 75 barg |
| Minimum differential pressure | 0.1 MPa 1 barg |
| Accuracy class (AC) | Up to 5 (depending on working conditions) |
| Lock-up pressure class (SG) | Up to 10 (depending on working conditions) |
| Nominal dimensions (DN) | DN 25 / 1" |
| Connections | Class 1500 RF or RTJ according to ASME B16.5 |
| Features | Values |
|---|---|
| Design pressure | Up to 25 MPa Up to 250 barg |
| Ambient temperature | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet gas temperature range | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet pressure range bpu (MAOP) | from 0.5 to 25 MPa from 5 to 250 barg |
| Range of downstream pressure (Wd) | from 0.4 to 7.5 MPa from 4 to 75 barg |
| Available Accessories | Built-in filter |
| Minimum differential pressure | 0.1 MPa 1 barg |
| Accuracy class (AC) | Up to 10 (depending on working conditions) |
| Lock-up pressure class (SG) | 10 (depending on working conditions) |
| Nominal dimensions (DN) | DN 25 / 1" |
| Connections | Class 1500 RF according to ANSI B16.5 or threaded NPT |
