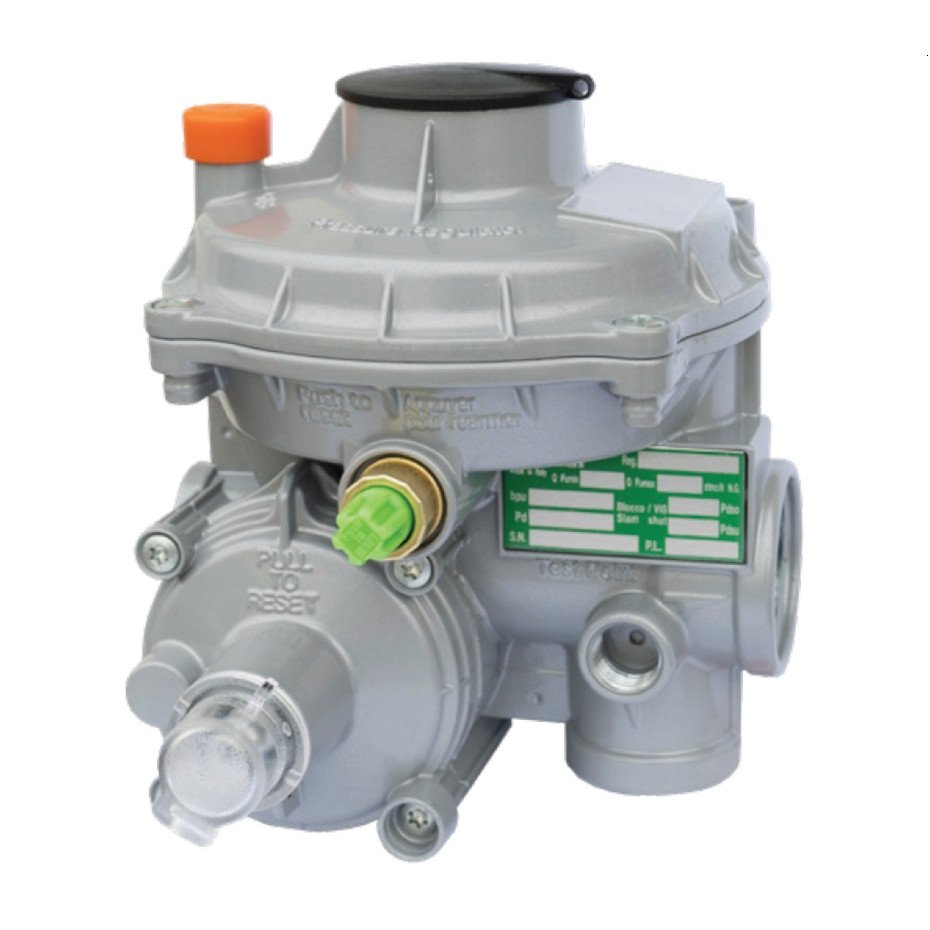

Low Pressure Regulator
of FE
| Features | Values |
|---|---|
| Design pressure* (PS¹ / DP²) | 0.86 MPa 8.6 bar |
| Inlet pressure (MAOP / pumax¹) | 0.01 - 0.7 MPa (on request up to 0.86 MPa) 0.1 - 7 bar (on request up to 8.6 bar) |
| Nominal capacity | 6 - 50 m³/h 212 - 1750 ft³/h |
| BP version | |
| Range of downstream pressure Wds | 1.3 - 18 kPa 13 - 180 mbar |
| Range of downstream pressure Wdso | 2.5 - 30 kPa 25 - 300 mbar |
| TR version | |
| Range of downstream pressure Wds | 18.1 - 50 kPa 181 - 500 mbar |
| Range of downstream pressure Wdso | 30 - 80 kPa 300 - 800 mbar |
| Accuracy class (AC) | 10 |
| Lock-up over pressure (SG) | 20 |
| Temperature Versions | |
| Ambient temperature* (TS¹)** |
Standard version: from -20 °C to +60 °C (-4 °F to +140 °F) Extended temperature version: from -30 °C to +60 °C (-22 °F to +140 °F) Arctic version: from -40 °C to +60 °C (-40 °F to +140 °F) |
| Inlet gas temperature* **** |
Standard version: from -10 °C to +60 °C (+14 °F to +140 °F) Extended temperature version: from -20 °C to +60 °C (-4 °F to +140 °F) Arctic version: from -30 °C to +60 °C (-22 °F to +140 °F) |
| Body connection | Inlet G 1/2" and outlet G 1" or G 3/4" according to ISO 228/1, other configurations or connections on request |
| Fittings |
- Gas (as per UNI EN ISO 228-1:2003) - Flat valve joint (as per NEP E29-533: 2014 and NEP E29-536: 2017) - NPT (according to ASME B1.20.1, excluding connections with metal/metal sealing) |

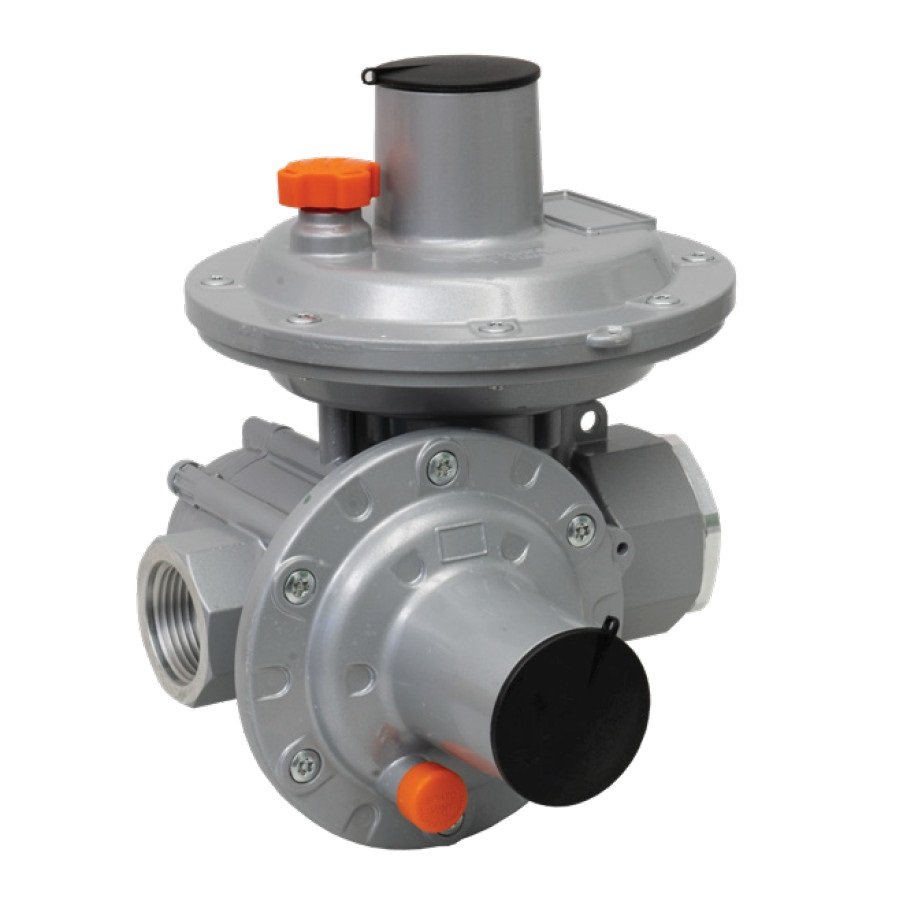

of FEX
| Features | Values |
|---|---|
| Design pressure* (PS¹ / DP²) | 0.86 MPa 8.6 bar |
| Inlet pressure (MAOP / pumax¹) | 0.01 - 0.86 MPa 0.1 - 8.6 bar |
| Nominal capacity | 50 - 100 m³/h 1765 - 3530 ft³/h |
| BP version | Range of downstream pressure Wds: 1.3 - 9.9 kPa 13 - 99 mbar |
| Range of downstream pressure Wdso: 3.2 - 16 kPa 32 - 160 mbar |
|
| Range of downstream pressure Wdsu: 0.6 - 25 kPa 6 - 250 mbar |
|
| MP version | Range of downstream pressure Wds: 10 - 35 kPa 100 - 350 mbar |
| Range of downstream pressure Wdso: 15.5 - 50 kPa 155 - 500 mbar |
|
| Range of downstream pressure Wdsu: - | |
| Accuracy class (AC) | 10 |
| Lock-up over pressure (SG) | 20 |
| Ambient temperature* (TS¹)** | Standard version: from -20 °C to +60 °C (-4 °F to +140 °F) |
| Extended temperature version: from -30 °C to +60 °C (-22 °F to +140 °F) | |
| Arctic version: from -40 °C to +60 °C (-40 °F to +140 °F) | |
| Inlet gas temperature* **** | Standard version: from -10 °C to +60 °C (+14 °F to +140 °F) |
| Extended temperature version: from -20 °C to +60 °C (-4 °F to +140 °F) | |
| Arctic version: from -30 °C to +60 °C (-22 °F to +140 °F) | |
| Body connection | Inlet G 1" and outlet G 1" 1/2 according to ISO 228/1, other configurations or connections on request |
| Fittings |
- Gas (as per UNI EN ISO 228-1:2003) - Flat swivel joint (as per NEP E29-533: 2014 and NF E29-536: 2017) - NPT (according to ASME B1.20.1, excluding connections with metal/metal sealing) - Flanged Class 150 RF (ASME B16.5) |

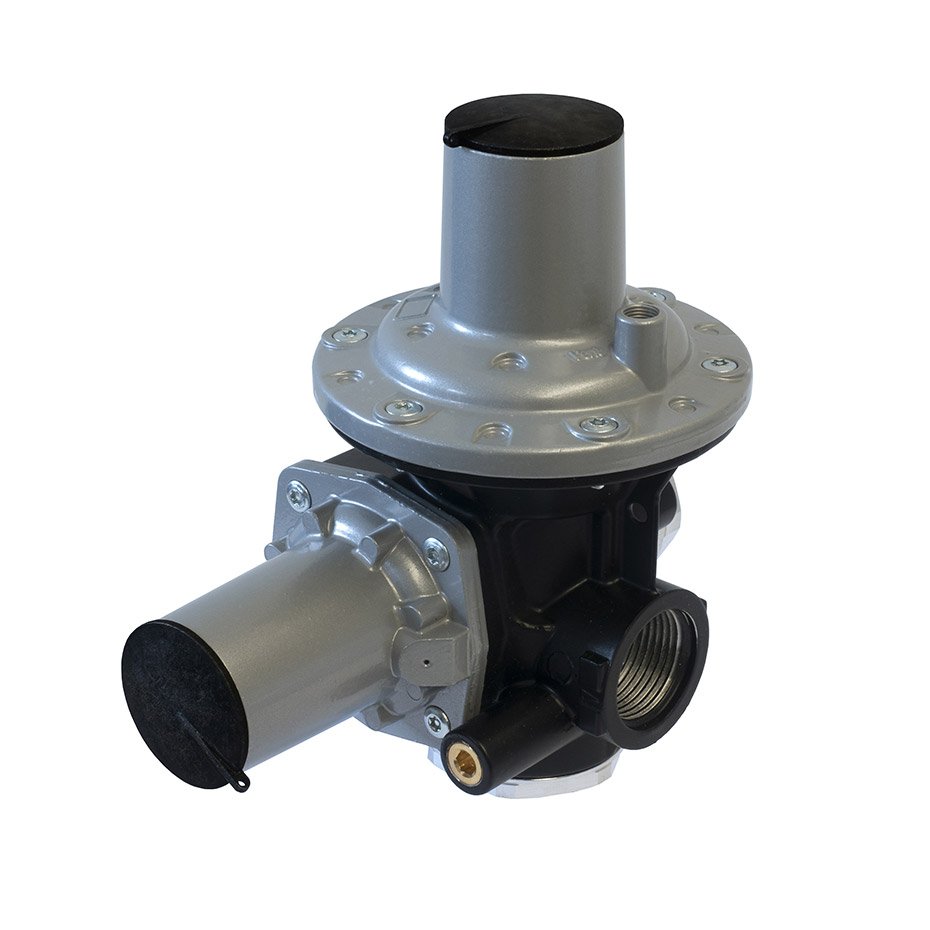

of HP 100 B
| Features | Values |
|---|---|
| Design pressure* (PS¹ / DP²) | up to 2 MPa up to 20 barg |
| Ambient temperature* (TS¹) | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet gas temperature* | from -20 °C to +60 °C from -4 °F to +140 °F |
| Inlet pressure (MAOP / Pumax¹) | from 0.1 MPa to 2 MPa from 1 bar to 20 barg |
| Range of downstream pressure (Wd¹) | from 30 to 80 kPa for AP, from 80 to 450 kPa for AP TR from 300 to 800 mbar for AP, from 800 to 4500 mbar for AP TR |
| Available accessories | Relief valve, slam shut (SSV cannot be retrofitted after purchase) |
| Minimum operating differential pressure (Δpmin¹) | 0.05 MPa 0.5 bar |
| Accuracy class (AC¹) | up to 10 (AC 5 available on request) |
| Lock-up pressure class (SG¹) | up to 10 |
| Nominal size (DN¹²) |
Inline version: 1”x1” 90° version: 1”x1” 1/2 |
| Connections | Threaded EN 10226-1 (for all versions), NPT ASME B1.20.1 (for inline version only), custom fittings available on request |
