Slam Shut Devices
of SBC 187 H
| Features | Values |
|---|---|
| Design pressure (PS) | Up to 25 MPa Up to 250 barg |
| Ambient temperature (TS) | From -20 °C to +60 °C From -4 °F to +140 °F |
| Inlet gas temperature | From -20 °C to +60 °C From -4 °F to +140 °F |
| Available accessories | Limit switch, remote tripping |
| Accuracy class (AG) | Up to 2.5 for OPSO (depending on working conditions) Up to 2.5 for UPSO (depending on working conditions) |
| Over pressure setting range (OPSO) | From 0.2 MPa to 9 MPa From 2 barg to 90 barg |
| Under pressure setting range (UPSO) | From 0.02 MPa to 9 MPa From 0.2 barg to 90 barg |
| Nominal size (DN) | DN 25 / 1” |
| Connections | ANSI 1500 according to ASME B16.5 |
| End to end dimensions | According to EN 334, EN 14382 |

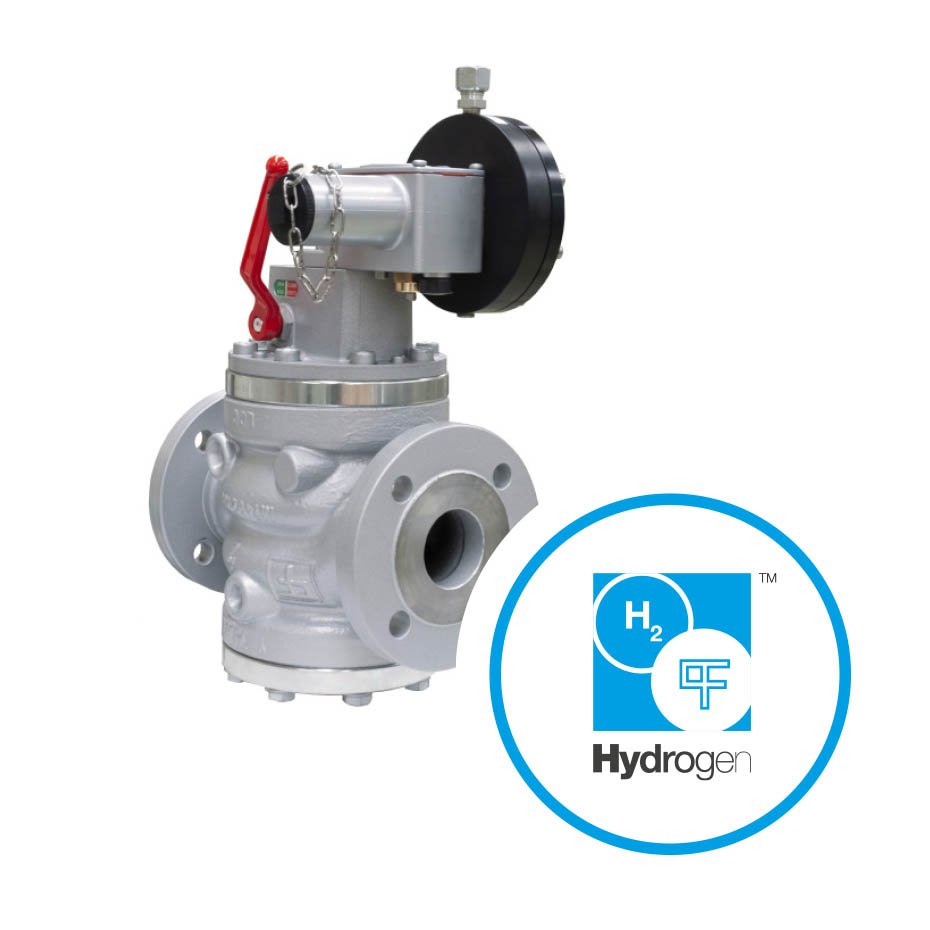

of SBC 782 H
| Features | Values |
|---|---|
| Design pressure (PS) | Up to 10.2 MPa Up to 102 barg |
| Ambient temperature (TS) | From -20 °C to +60 °C From -4 °F to +140 °F |
| Inlet gas temperature | From -20 °C to +60 °C From -4 °F to +140 °F |
| Available accessories | Limit switch, remote tripping |
| Accuracy class (AG) | Up to 2.5 for OPSO (depending on working conditions) Up to 2.5 for UPSO (depending on working conditions) |
| Over pressure setting range (OPSO) | From 2 KPa to 9 MPa From 20 mbar to 90 bar |
| Under pressure setting range (UPSO) | From 1 KPa to 9 MPa From 10 mbar to 90 bar |
| Nominal size (DN) |
DN 25 | 1"; DN 50 | 2"; DN 80 | 3"; DN 100 | 4"; DN 150 | 6"; DN 200 | 8"; DN 250 | 10" |
| Connections |
Class 150/300/600 RF / RTJ according to ASME B 16.5 PN 16/25/40 according to EN 1092-1 |
| End to end dimensions | According to EN 334, EN 14382 |
