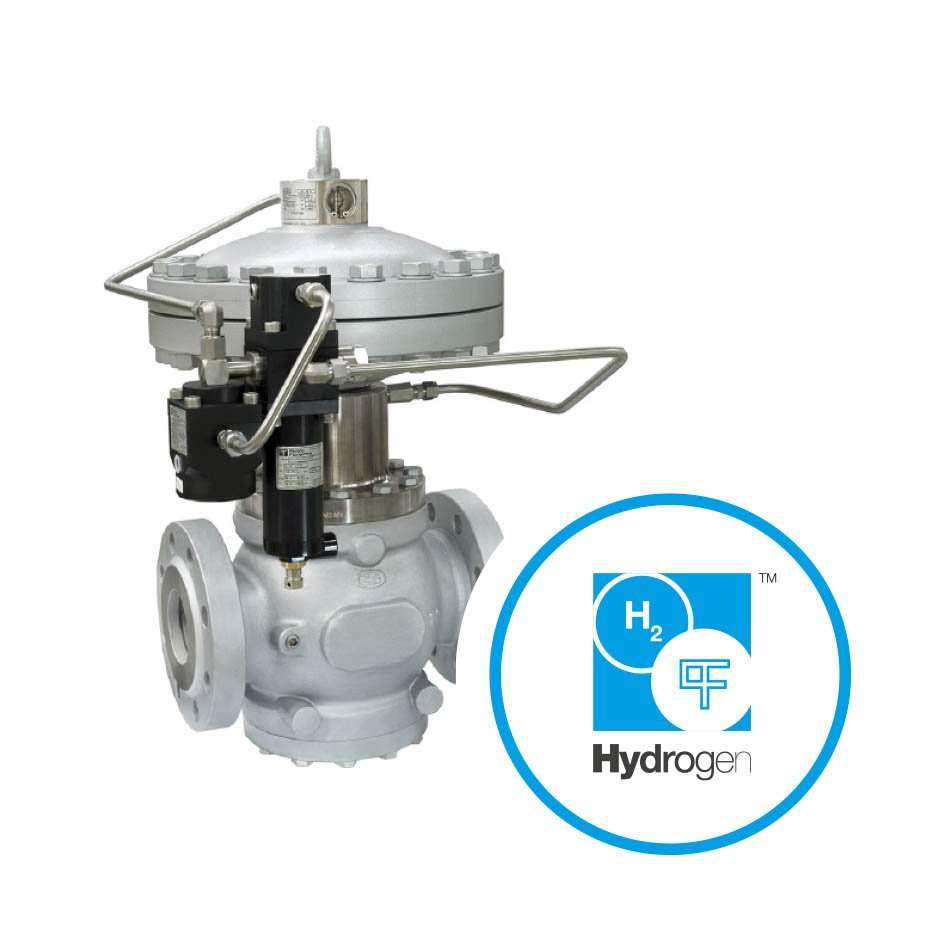

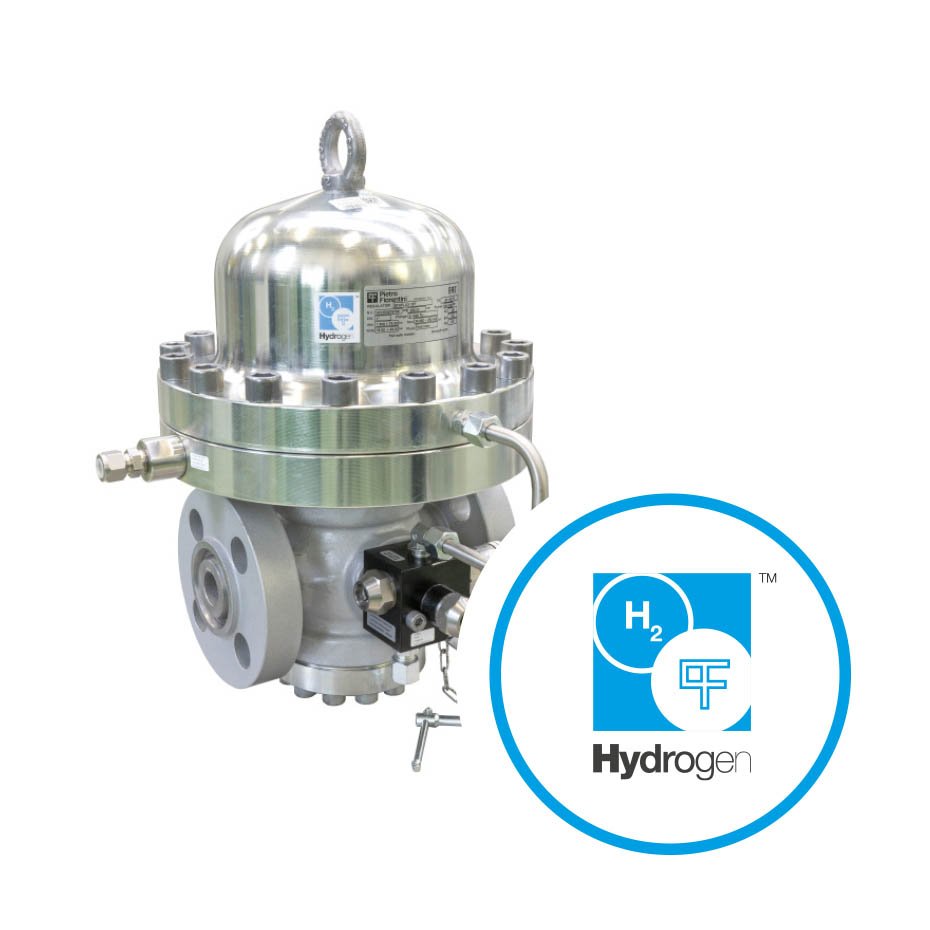

High Medium Pressure Regulator
Technical Specifications
| Features | Values |
|---|---|
| Design pressure (PS / DP) | Up to 10.2 MPa Up to 102 bar |
| Ambient temperature (TS) | -20 °C to +60 °C (-4 °F to +140 °F) |
| Inlet gas temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Inlet pressure (MAOP / Pmax) | 0.05 to 10.0 MPa 0.5 to 100 bar |
| Range of downstream pressure (Wd) | 0.03 to 7.4 MPa 0.3 to 74 bar |
| Available accessories | DB/819 Silencer, LDB/171 Silencer, PM/819 Monitor, SB/82 Slam shut, HB/97 Slam shut |
| Minimum operating differential pressure (Δpmin) | 0.05 MPa 0.5 bar |
| Accuracy class (AC) | Up to 1 |
| Lock-up pressure class (SG) | Up to 2.5 |
| Nominal size (DN) | DN 25 | 1", DN 50 | 2", DN 80 | 3", DN 100 | 4" DN 150 | 6", DN 200 | 8", DN 250 | 10", DN 300 | 12" |
| Connections | Class 150, 300, 600 RF or RTJ according to ASME B16.5 PN16 according to ISO 7005 |
| Features | Values |
|---|---|
| Flow rates | 8 m³/h to 6500 m³/h (282 cfh to 229,545 cfh) |
| Design pressure | Up to 10 MPa / Up to 100 bar |
| Ambient temperature | -40 °C to +65 °C (-40 °F to 145 °F) |
| Gas temperature range | -25 °C to +55 °C (-13 °F to 131 °F) |
| Accuracy | Qmin ≤ Q < Qt ±2% & Qt ≤ Q ≤ Qmax ±1% (Qt according to EN12261) |
| Rangeability | Up to 1:20 |
| Repeatability | Better than 0.1% |
| Index Protection | IP 67 |
| Applicable metrology standards | MID 2014/32/EU |
| Index & pulse out | 8 digits, 2x low frequency pulse out (NO reed contact), 1x anti-fraud out (NC reed contact) |
| Hazardous area certification | ATEX II 2 G Ex h IIC T6 Gb |
| Accessories | High-frequency sensors |
| Nominal dimensions DN | Aluminium body: DN 50 to DN 200 Carbon steel body: DN 50 to DN 300 |
| Connections | ANSI 150/300/600 according to ASME B16.5 PN 16 to PN100 according to EN 1092-1 |
Technical Specifications
| Features | Values |
|---|---|
| Design pressure (PS / DP) | Up to 10.2 MPa Up to 102 bar |
| Ambient temperature (TS) | -20 °C to +60 °C (-4 °F to +140 °F) |
| Inlet gas temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Inlet pressure (MAOP / Pmax) | 0.05 to 10.0 MPa 0.5 to 100 bar |
| Range of downstream pressure (Wd) | 0.03 to 7.4 MPa 0.3 to 74 bar |
| Available accessories | DB/819 Silencer, LDB/171 Silencer, PM/819 Monitor, SB/82 Slam shut, HB/97 Slam shut |
| Minimum operating differential pressure (Δpmin) | 0.05 MPa 0.5 bar |
| Accuracy class (AC) | Up to 1 |
| Lock-up pressure class (SG) | Up to 2.5 |
| Nominal size (DN) | DN 25 | 1", DN 50 | 2", DN 80 | 3", DN 100 | 4" DN 150 | 6", DN 200 | 8", DN 250 | 10", DN 300 | 12" |
| Connections | Class 150, 300, 600 RF or RTJ according to ASME B16.5 PN16 according to ISO 7005 |
