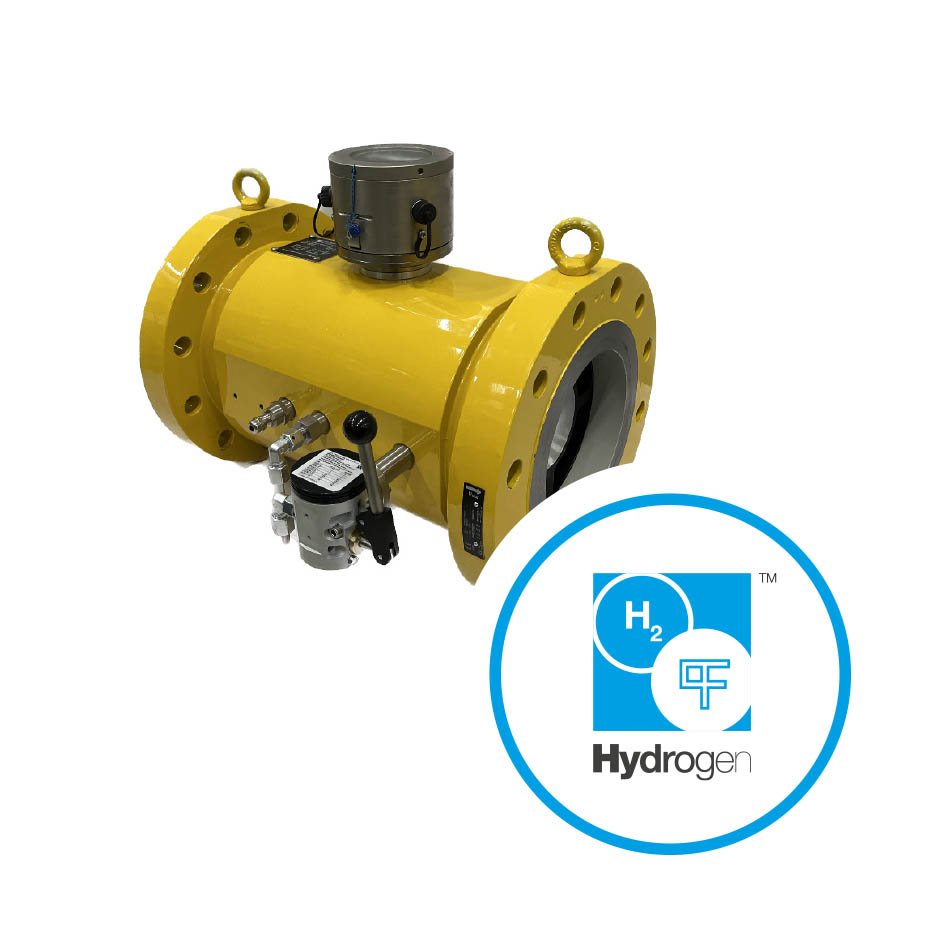

Flow Meters
Technical Specifications
| Features | Values |
|---|---|
| Flow rates | 0.5 m³/h to 1000 m³/h (17.6 cfh to 35314 cfh) |
| Design pressure | Up to 2 MPa / Up to 20 bar |
| Ambient temperature | -25 °C to +55 °C (-13 °F to 131 °F) |
| Gas temperature range | -25 °C to +55 °C (-13 °F to 131 °F) |
| Accuracy | Qmin ≤ Q < Qt ±2% & Qt ≤ Q ≤ Qmax ±1% |
| Rangeability | Up to 1:250 |
| Repeatability | Better than 0.1% |
| Index Protection | IP 67 |
| Applicable metrology standards | MID 2014/32/EU |
| Index & pulse out | 8 digits, 2x low frequency pulse out (NO reed contact), 1x anti-fraud out (NC reed contact) |
| Hazardous area certification | ATEX II 2 G Ex h IIC T6 Gb |
| Accessories | High-frequency sensors, by-pass valve on Twin versions |
| Nominal dimensions DN | DN 40 to DN 150 |
| Connections | ANSI 150 according to ASME B16.5 or PN 16/25 according to EN 1092-1 |
| Features | Values |
|---|---|
| Flow rates | 8 m³/h to 6500 m³/h (282 cfh to 229,545 cfh) |
| Design pressure | Up to 10 MPa / Up to 100 bar |
| Ambient temperature | -40 °C to +65 °C (-40 °F to 145 °F) |
| Gas temperature range | -25 °C to +55 °C (-13 °F to 131 °F) |
| Accuracy | Qmin ≤ Q < Qt ±2% & Qt ≤ Q ≤ Qmax ±1% (Qt according to EN12261) |
| Rangeability | Up to 1:20 |
| Repeatability | Better than 0.1% |
| Index Protection | IP 67 |
| Applicable metrology standards | MID 2014/32/EU |
| Index & pulse out | 8 digits, 2x low frequency pulse out (NO reed contact), 1x anti-fraud out (NC reed contact) |
| Hazardous area certification | ATEX II 2 G Ex h IIC T6 Gb |
| Accessories | High-frequency sensors |
| Nominal dimensions DN | Aluminium body: DN 50 to DN 200 Carbon steel body: DN 50 to DN 300 |
| Connections | ANSI 150/300/600 according to ASME B16.5 PN 16 to PN100 according to EN 1092-1 |
