Modulating Burners

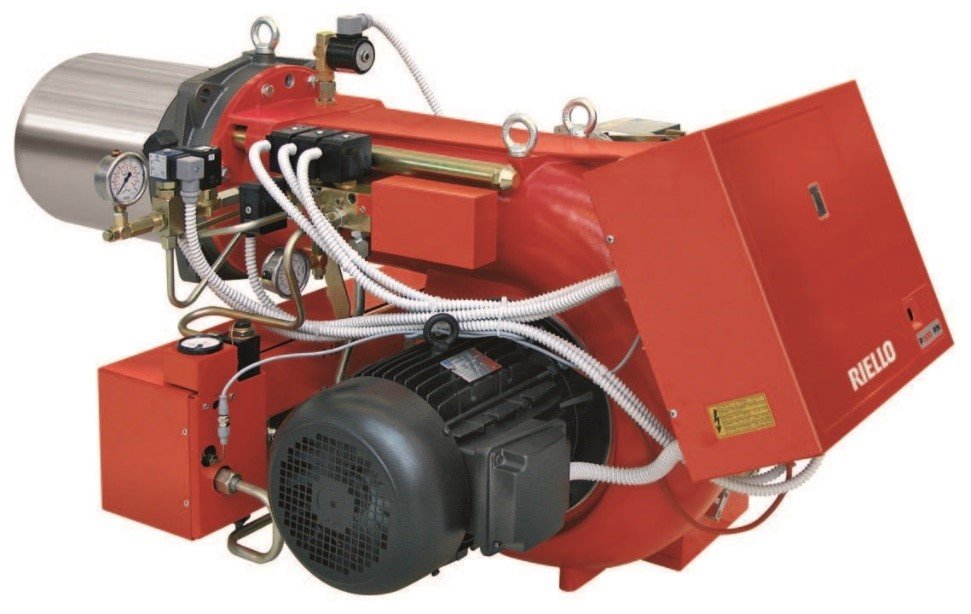

Press P/NA- P/NA Eco Series
Heavy oil burner series P/NA is an evolution of the traditional heavy oil modulating burners P/N series. The new range applies a different technology to replace the usual mechanical atomising (high pressure) by “assisted” air/steam atomising (feed pressure 5-8 bar) and taking the related advantages when burning heavy fuels (even vegetal oil). The upgraded design has been introduced to meet even the worst fuel qualities and to reach anyway the best achievable combustion performance (lower particulate and NOx emissions). The capacity range is suited to cover applications on steam generators designed for production from 1 to 6 tons/hr of steam or an equivalent capacity in case of other kind of boiler. Reliable and smooth ignition is achieved by LPG pilot burner installed into the combustion head. The control system includes all safety and operation interlocks, making possible the configuration compliance to the latest design norms on world-wide base (i.e. EN 267 – UL 296 – others), by the available options on request.
| Press P/NA - P/NA ECO Series | |
|---|---|
| P 140 P/NA | 400/800 - 1600 kW |
| P 200 P/NA | 570/1140 - 2280 kW |
| P 300 P/NA | 683/1710 - 3420 kW |
| P 450 P/NA | 1140/2615 - 5130 kW |
| P 140 P/NA ECO | 400/800 - 1600 kW |
| P 200 P/NA ECO | 570/1140 - 2280 kW |
| P 300 P/NA ECO | 683/1710 - 3420 kW |
| P 450 P/NA ECO | 1140/2615 - 5130 kW |

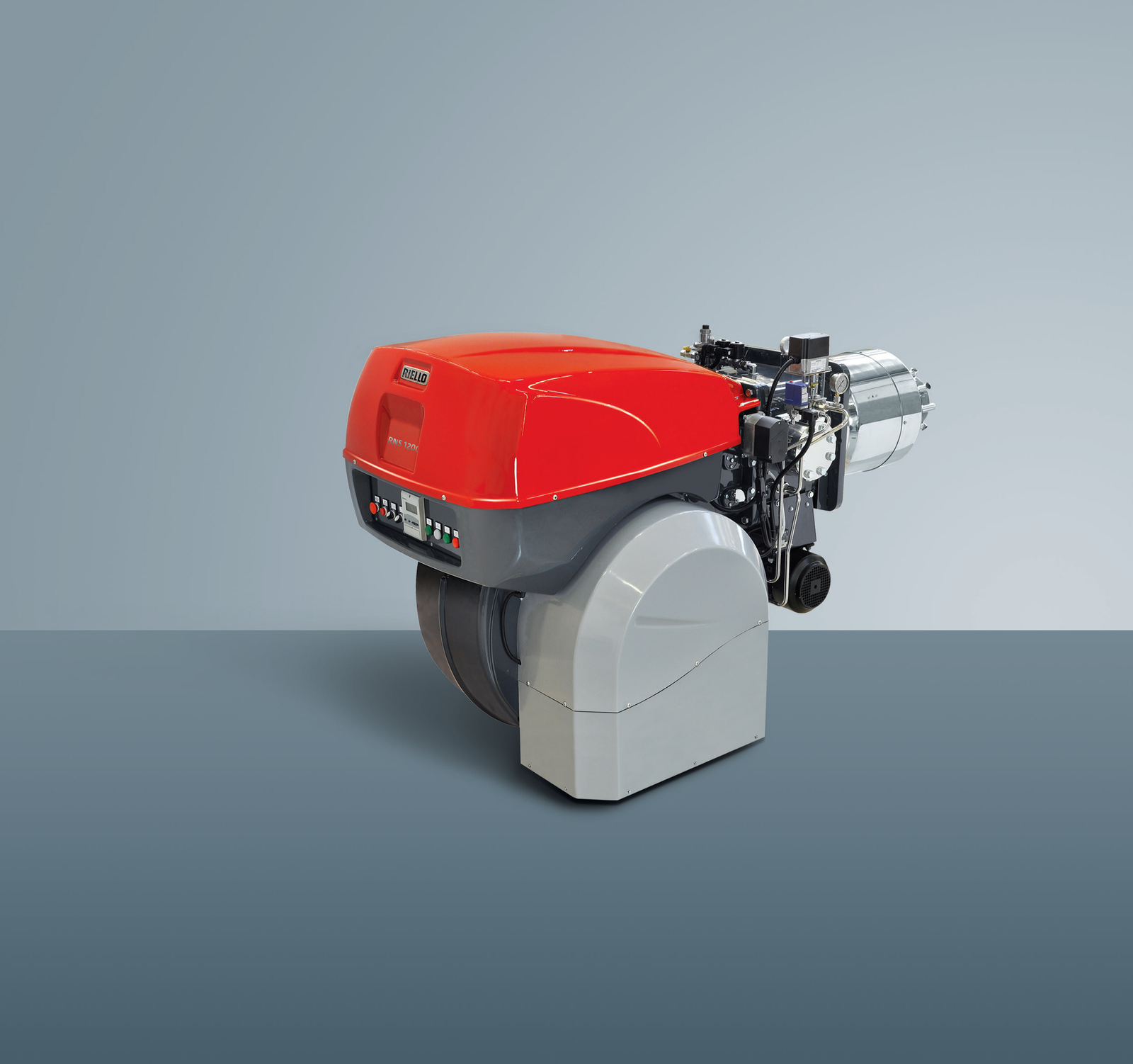

RN/E-EV series
RN/E-EV series burners are characterised by a modular monoblock structure that means all necessary components can be combined in a single unit thus making installation easier, faster and, above all, more flexible. The series covers a firing range from 1200 to 11500 kW, and they have been designed for use in hot water boilers, overheated water boilers as well as steam boilers. Operation can be “two stage progressive” or alternatively “modulating”. The burner can, therefore, supply with precision the demanded power, guaranteeing an high efficiency system level and the stability setting, obtaining fuel consumption and operating costs reduction.
| RN/E-EV Series | |
|---|---|
| RN 650 /E-EV | 1430/3000 - 6550 kW |
| RN 800/E-EV | 1750/3500 - 8000 kW |
| RN 1000/E-EV | 1200/3750 - 10600 kW |
| RN 1200/E-EV | 1500/5500 - 11500 kW |

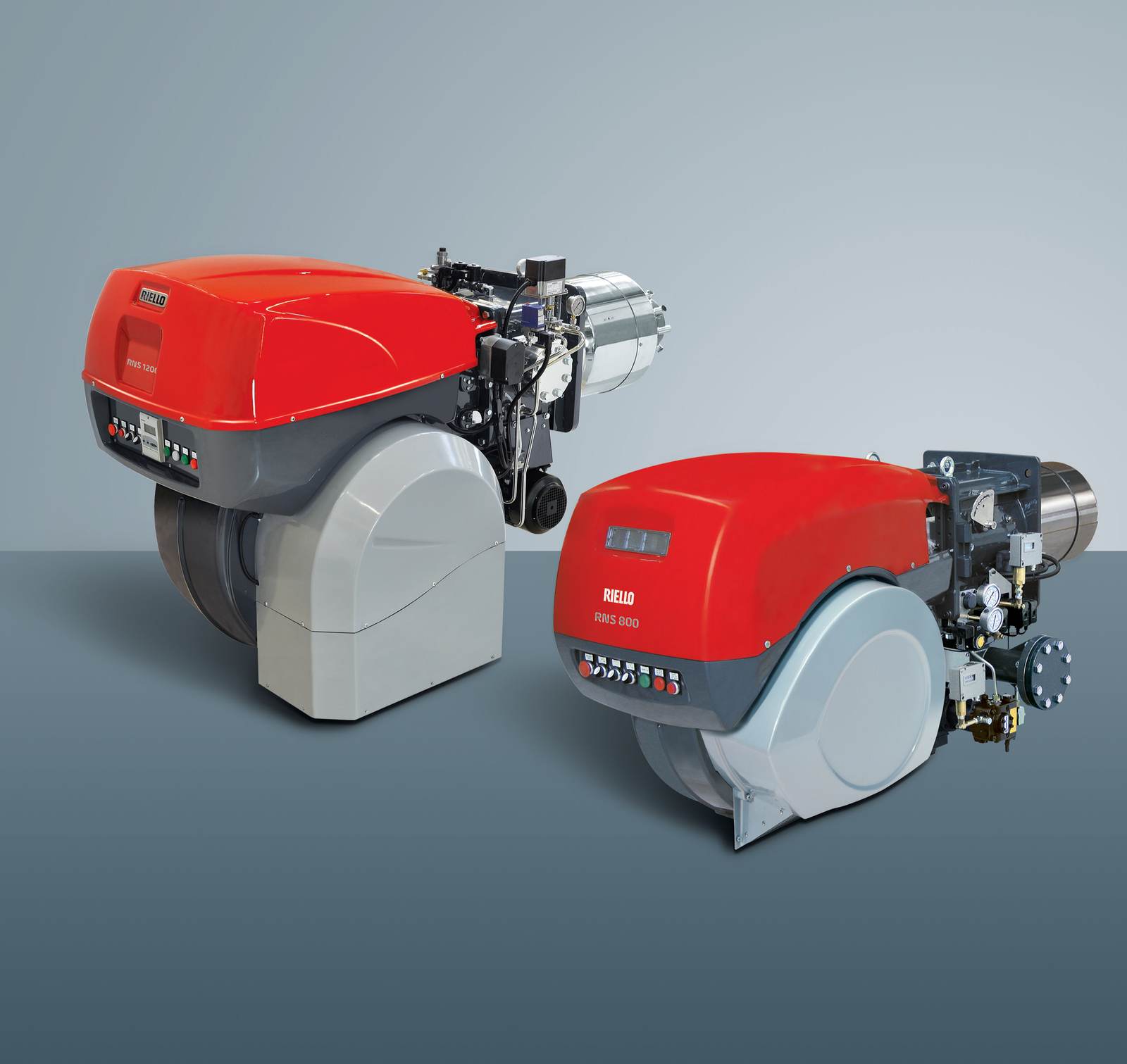

RN/M Series
RN/M burners are characterised by a modular monoblock structure that means all necessary components can be combined in a single unit thus making installation easier, faster and, above all, more flexible. The series covers a firing range from 1200 to 11500 kW, and it has been designed for use in hot water boilers, overheated water boilers as well as steam boilers. Operation can be “two stage progressive” or alternatively “modulating”, for heavy oil with the installation of a PID logic regulator. The mechanical cam device of regulation allows to catch up a high modulation ratio on all firing rates range. The burners can, therefore, supply with precision the demanded power, guaranteeing a high efficiency system level and the stability setting, obtaining fuel consumption and operating costs reduction.
| RN/M Series | |
|---|---|
| RN 650/M | 1430/3000 - 6550 kW |
| RN 800/M | 1750/3500 - 8000 kW |
| RN 1000/M | 1200/3750 - 10600 kW |
| RN 1200/M | 1500/5500 - 11500 kW |
Press P/N-P/N Eco Series
The PRESS P/N series of burners covers a firing range from 800 to 5130 kW. They have been designed in three versions for use in commercial and industrial installation, to burn different oil viscosity from 7 up to 60°E @ 50°C. Operation can be “two stage progressive” or, alternatively, “modulating” with the installation of a PID logic regulator and respective probes, which guarantees a turn down ratio of 3:1. The versatility of this range makes the burner well suited for use on steam boilers where the load factor is subject to wide variations, on thermal oil boilers and on boilers for particular heating plants, as hospitals or similar. Simplified maintenance is achieved by the Riello designed slide bar system, which allows easy access to all of the essential components of the combustion head.
| Press P/N -P/N ECO Series | |
|---|---|
| P 140 P/N | 400/800- 1600 kW |
| P 200 P/N | 570/1140 - 2280 kW |
| P 300 P/N | 683/1710-3420 kW |
| P 450 P/N | 1140/2615-5130 kW |
| P 140 P/N ECO | 400/800- 1600 kW |
| P 200 P/N ECO | 570/1140 - 2280 kW |
| P 300 P/N ECO | 683/1710-3420 kW |
| P 450 P/N ECO | 1140/2615-5130 kW |
