Two Stage
GAS/2 Series
The GAS/2 series of burners covers a firing range from 130 to 3200 kW and they have been designed for use in civil installations of average dimensions, like building areas and large apartment groups or for use in industrial applications, like small or medium plants. Operation is two stage; the combustion head, that can be set on the basis of required output, allows optimal performance ensuring good combustion and reducing fuel consumption. The main feature of these burners is their reliability due to a simple and strong construction, which permits operation without particular maintenance intervention. Simplified maintenance is achieved by the slide bar system, which allows easy access to all of the essential components of the combustion head. All electrical components are easily accessible only by dismounting a protection panel, thus guaranteeing a quick and simple intervention on components.
| GAS/2 Series | |
|---|---|
| GAS 3/2 | 80/130 - 350 kW |
| GAS 4/2 | 120/180 - 470 kW |
| GAS 5/2 | 155/320 - 660 kW |
| GAS 6/2 | 300/520 - 1050 kW |
| GAS 7/2 | 400/800 - 1760 kW |
| GAS 9/2 | 1000/1750 - 3200 kW |

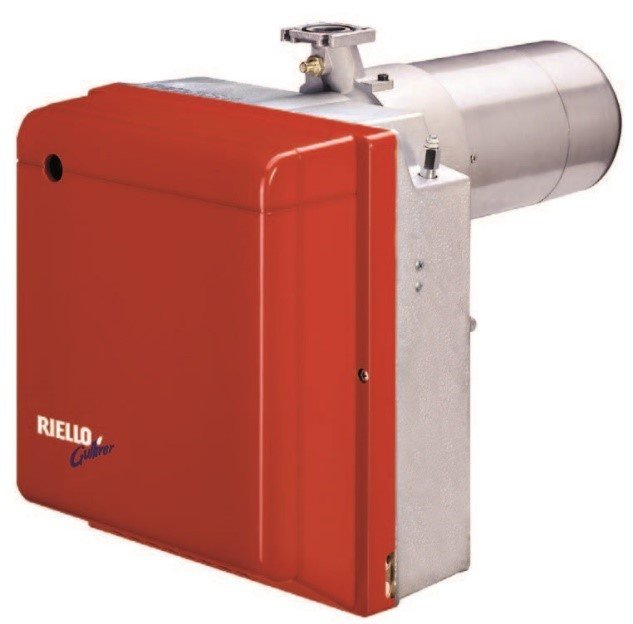

Gulliver BSD Series
The Riello Gulliver BSD series of two stage gas burners, is a complete range of Low NOx emission products, developed to respond to any request for home heating, conforming to the most severe standards regarding the reduction of polluting emissions. This series of burners is available in four different models with an output ranging from 16 to 250 kW, divided in four different structures.
| Gulliver BSD Series | |
|---|---|
| BS1D | 16/19 - 52 kW |
| BS2D | 35/40 - 91 kW |
| BS3D | 65/80 - 190 kW |
| BS4D | 110/140 - 250 kW |

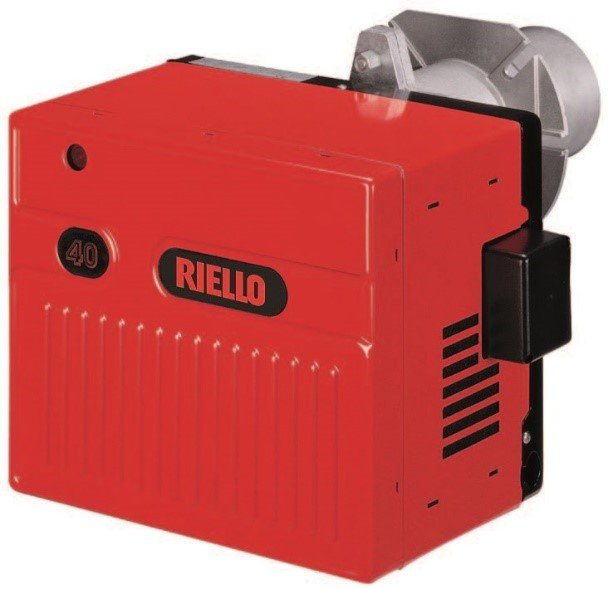

Riello 40 FSD Series
The Riello 40 FSD series of one stage gas burners is a complete range of products developed to respond to any request for light industrial applications. The Riello 40 FSD series is available in five different models, with an output ranging from 11 to 220 kW, divided into four different structures. All the models use the same components designed by Riello for the Riello 40 FSD series. The high quality level guarantees safe working. The Riello 40 FSD burners are fitted with a microprocessor-based control box with diagnostic functions.
| Riello 40 FSD Series | |
|---|---|
| FS5D | 12/23 - 58 kW |
| FS20D | 58/81 - 220 kW |

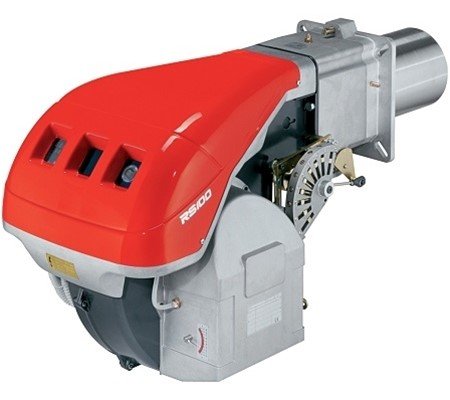

RS Series
The RS burners series covers a firing range from 45 to 2290 kW, and it has been designed for use in low or medium temperature hot water boilers, hot air or steam boilers, diathermic oil boilers. Operation is “two stage progressive”; the burners are fitted with a microprocessor control panel which supplies indication of operation and diagnosis of fault cause. The elevated performance of the fans and combustion head guarantee flexibility of use and excellent working at all firing rates. The exclusive design ensures reduced dimensions, simple use, and maintenance. A wide range of accessories guarantees elevated working flexibility.
| RS Series | |
|---|---|
| RS 34 MZ | 45/125 - 390 kW |
| RS 44 MZ | 80/203 - 550 kW |
| RS 70 | 192/465 - 814 kW |
| RS 100 | 232/698 - 1163 kW |
| RS 130 | 372/930 - 1512 kW |
| RS 150 | 300/900 - 1850 kW |
| RS 190 | 470/1279 - 2290 kW |
