Gas Burner Modulating
RS/E MZ Series
The RS/E MZ burners series covers a fi ring range from 70 to 2650 kW, and it is based on a new Digital Burner Management System, Riello REC27, which is able to manage the air-fuel ratio by independent servomotors in order to obtain a perfect output control and to assure a correct combustion and safe operation on all modulation range. Operation can be “two stage progressive” or, alternatively, “modulating” with the installation of a PID logic regulator and respective probes.

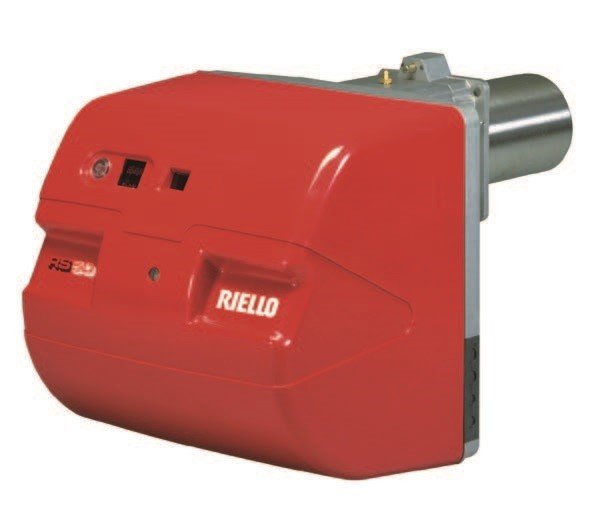

Contact UsRS/M Series
The RS/M burners series covers a firing range from 45 to 2650 kW, and it has been designed for use in low or medium temperature hot water boilers, hot air or steam boilers, diathermic oil boilers. Operation can be “two stage progressive” or, alternatively, “modulating” with the installation of a PID logic regulator and respective probes. RS/M burners series guarantees high efficiency levels in all the various applications, thus reducing fuel consumption and running costs. The exclusive design ensures reduced dimensions, simple use and maintenance. A wide range of accessories guarantees elevated working flexibility.
| RS/M Series | |
|---|---|
| RS 34/M MZ | 45/125 - 390 kW |
| RS 44/M MZ | 80/203 - 550 kW |
| RS 50/M MZ | 80/285 - 630 kW |
| GAS 6 P/M | 300/520 - 1050 kW |
| GAS 7 P/M | 400/800 - 1760 kW |
| GAS 8 P/M | 640/1163 - 2210 kW |
| GAS 9 P/M | 870/1744 - 3488 kW |
| GAS 10 P/M | 1140/2441 - 4885 kW |

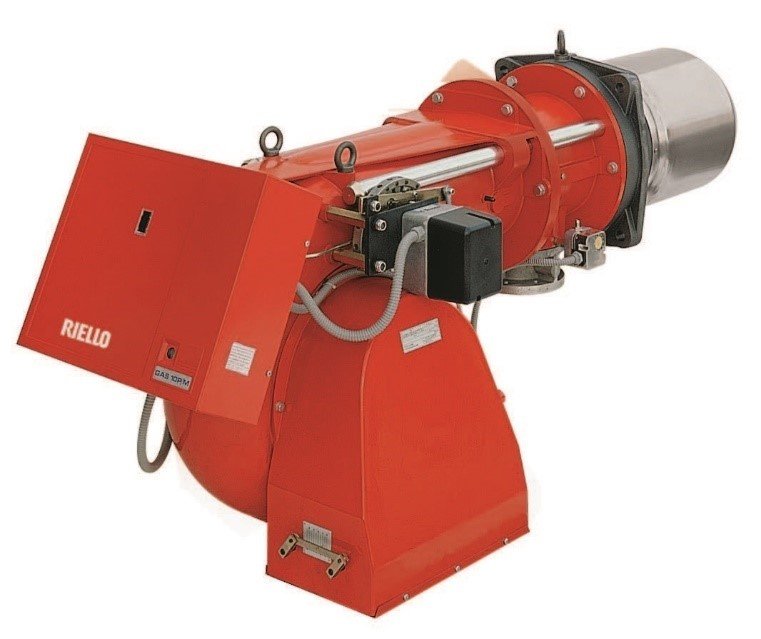

GAS P/M Series
The GAS P/M series covers a firing range from 130 to 4885 kW. Operation is featured by progressive two stage operation or full modulation, with an advanced modulating control system and probes. The burners of GAS P/M series are well suited for applications requiring versatility of control (process, steam, refrigerating absorption) where a variable output is needed. Due to their metal sheet structures, they are specifically suitable for process applications where plastic materials could be easily damaged or deformed. Simplified maintenance is achieved by sliding bars which permit the access to the combustion head without need of removing the burner from the boiler.
| GAS P/M Series | |
|---|---|
| GAS 3 P/M | 80/130 - 350 kW |
| GAS 4 P/M | 120/180 - 470 kW |
| GAS 5 P/M | 155/320 - 660 kW |
| GAS 6 P/M | 300/520 - 1050 kW |
| GAS 7 P/M | 400/800 - 1760 kW |
| GAS 8 P/M | 640/1163 - 2210 kW |
| GAS 9 P/M | 870/1744 - 3488 kW |
| GAS 10 P/M | 1140/2441 - 4885 kW |

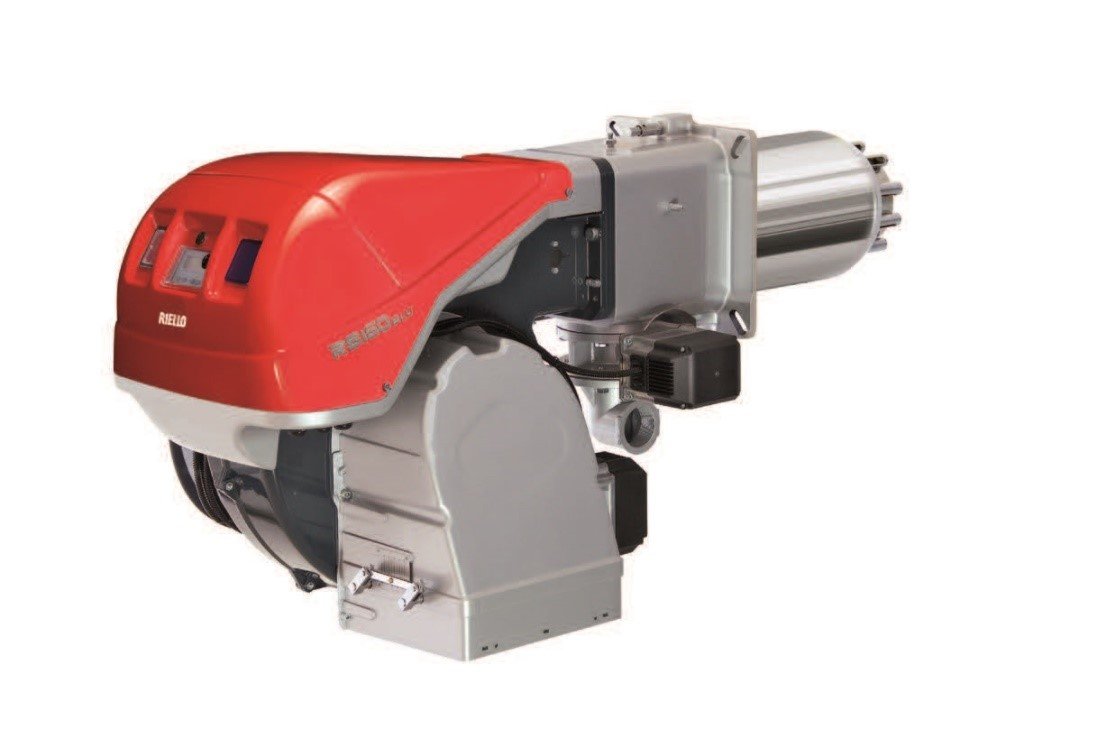

RS/E-EV BLU Series
The RS/E - /EV BLU burners series covers a firing range from 125 to 2400 kW, and it is based on the Digital Burner Management System, Riello REC27-37, which is able to manage the air-fuel ratio by independent servomotors in order to obtain a perfect output control and to assure a correct combustion and safe operation on all modulation range. Operation can be “two stage progressive” or, alternatively, “modulating” with the installation of a PID logic regulator and respective probes. RS/E - /EV BLU burners series guarantees high efficiency levels in all the various applications, thus reducing fuel consumption and running costs. The exclusive design ensures reduced dimensions, simple use and maintenance. A wide range of accessories guarantees elevated working flexibility.
| RS/E-EV BLU Series | |
|---|---|
| RS 25/E BLU | 45/125 - 370 kW |
| RS 35/E BLU | 72/202 - 480 kW |
| RS 45/E BLU | 90/190 - 550 kW |
| RS 55/E BLU | 100/300 - 680 kW |
| RS 68/E -EV BLU | 150/350 - 860 kW |
| RS 120/E -EV BLU | 300/600 - 1300 kW |
| RS 160/E -EV BLU | 300/930 - 1860 kW |
| RS 200/E -EV BLU | 570/1375 - 2400 kW |
| RS 300/E -EV BLU | 500/1350 - 3800 kW |
| RS 400/E -EV BLU | 800/1840 - 4550 kW |
| RS 500/E-EV BLU | 1000/2500 - 5170 kW |
| RS 650/E -EV BLU | 1410/3020 - 6500 kW |
| RS 800/E -EV BLU | 1200/3500 - 8100 kW |
| RS 1000/E -EV BLU | 1100/4000 - 10100 kW |
| RS 1200/E -EV BLU | 1500/5500 - 11100 kW |

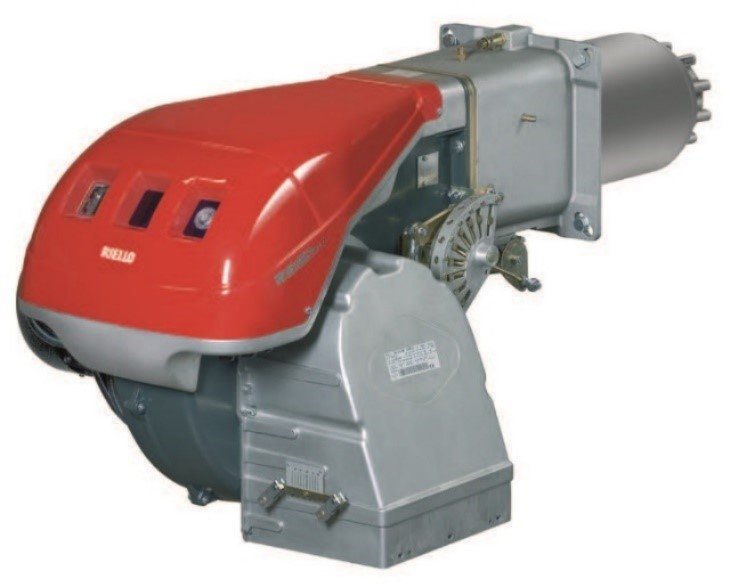

RS /M BLU Series
The RS/M BLU burners series covers a firing range from 44 to 2400 kW, and it has been designed for use in low or medium temperature hot water boilers, hot air or steam boilers, diathermic oil boilers. Operation can be “two stage progressive” or, alternatively, “modulating” with the installation of a PID logic regulator and respective probes. RS/M BLU burners series guarantees high efficiency levels in all the various applications, thus reducing fuel consumption and running costs. The exclusive design ensures reduced dimensions, simple use and maintenance. Optimisation of sound emissions is guaranteed by the special design of the air suction circuit and by incorporated sound proofing material. A wide range of accessories guarantees elevated working flexibility.
| RS /M BLU Series | |
|---|---|
| RS 25 /M BLU | 45/125 - 370 kW |
| RS 35 /M BLU | 72/202 - 480 kW |
| RS 45 /M BLU | 90/190 - 550 kW |
| RS 55 /M BLU | 100/300 - 680 kW |
| RS 68 /M BLU | 150/350 - 860 kW |
| RS 120 /M BLU | 300/600 - 1300 kW |
| RS 160 /M BLU | 300/930 - 1860 kW |
| RS 200 /M BLU | 570/1375 - 2400 kW |
| RS 300 /M BLU | 500/1350 - 3800 kW |
| RS 400 /M BLU | 950/1830 - 3800 kW |
| RS 410 /M BLU | 500/1500 - 4450 kW |
| RS 500/M BLU | 1000/2500 - 5170 kW |
| RS 510 /M BLU | 680/1800 - 5250 kW |
| RS 610 /M BLU | 1000/2200 - 6250 kW |
| RS 650 /M BLU | 1410/3020 - 6500 kW |
| RS 800 /M BLU | 1200/3500 - 8100 kW |
| RS 810 /M BLU | 1200/3500 - 8010 kW |
| RS 1000 /M BLU | 1100/4000 - 10100 kW |
| RS 1200 /M BLU | 1500/5500 - 11100 kW |

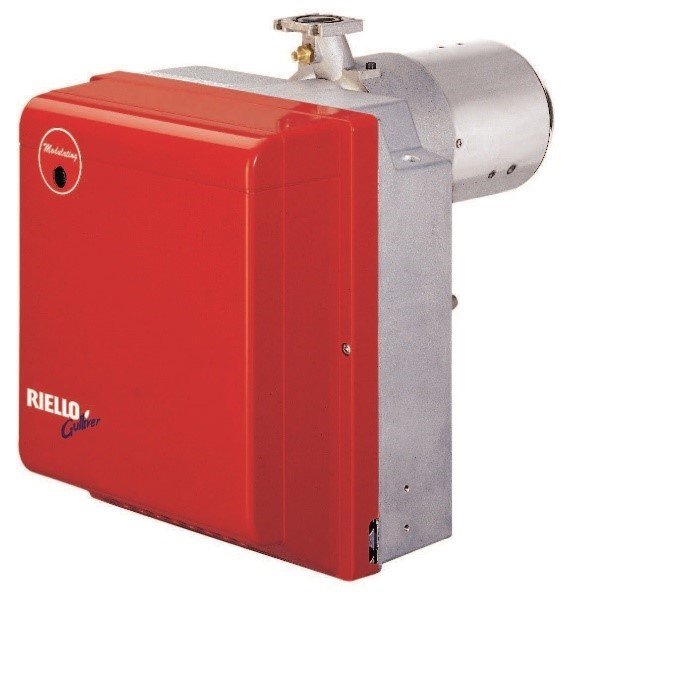

Gulliver BS/M Series
The Riello Gulliver BS/M series of two stage, progressive or modulating gas burners, is a complete range of Low NOx emission products, developed to respond to any request for home heating, conforming to the most severe standards regarding the reduction of polluting emissions. This series of burners is available in three different models with an output ranging from 49 to 250 kW, divided in three different structures. All the models use the same components designed by Riello for the Gulliver series.
Contact Us

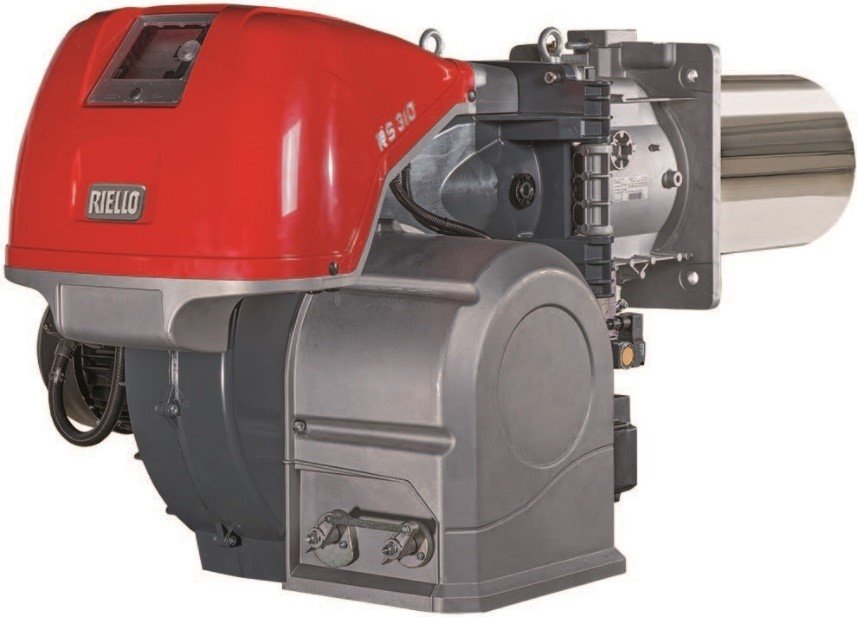

RS /M MZ Series
The high power monoblock Burners Series RS 310-410-510-610/M MZ, are the result of intensive activities of technical research and considerable investments, carried out in recent years, that allowed the highest levels of technological development to be achieved in the Industrial Burners context, confirming the historical leadership of Riello in this important area of energy management. The remarkable results of performance, quality and reliability, are now consolidated by the creation of new models in the 3-6 MW range, RS 310-410-510-610/M MZ, able to summarize and concentrate the best technological expertise of Riello. The RS 310-410-510-610/M MZ burners series covers a firing range from 1200 to 6250 kW, and it has been designed for use in low or medium temperature hot water boilers, hot air or steam boilers, diathermic oil boilers. Operation can be “two stage progressive” or, alternatively, “modulating” with the installation of a PID logic regulation. The exclusive design ensures reduced dimensions, simple use and maintenance. A wide range of accessories guarantees elevated working flexibility.
| RS /M MZ Series | |
|---|---|
| RS 310 /M MZ | 600/1300 - 3900 kW |
| RS 410 /M MZ | 800/2000 - 4900 kW |
| RS 510 /M MZ | 802/2200 - 5250 kW |
| RS 610 /M MZ | 820/2400 - 6300 kW |

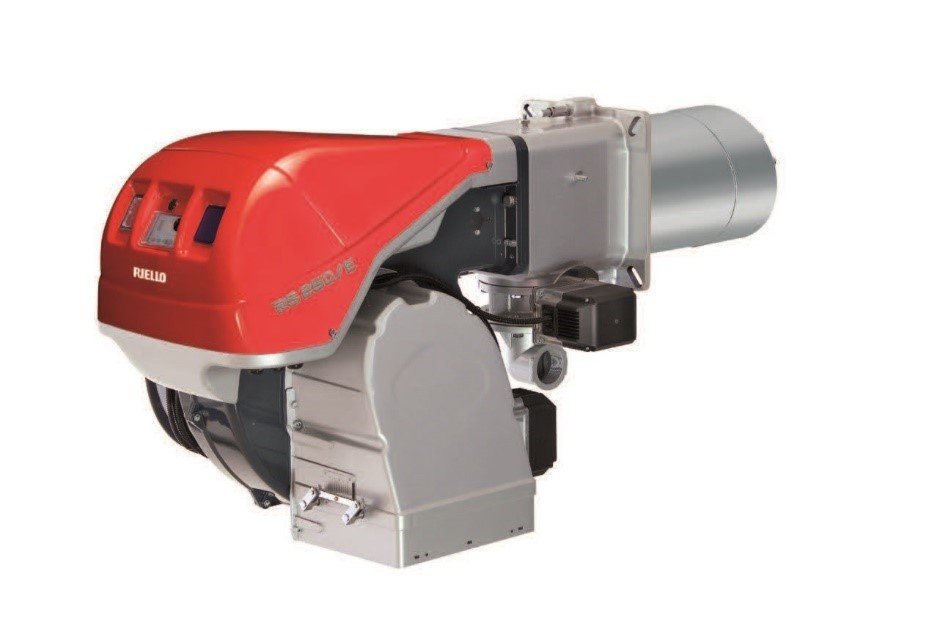

RS /E-EV MZ Series
The RS /E-/EV MZ burners series covers a firing range from 1200 to 6250 kW, and it has been designed for use in low or medium temperature hot water boilers, hot air or steam boilers, diathermic oil boilers. It is based on the Digital Burner Management System, Riello REC27-37, which is able to manage the air-fuel ratio by independent servomotors in order to obtain a perfect output control and to assure a correct combustion and safe operation on all modulation range. Operation can be “two stage progressive” or, alternatively, “modulating” with the installation of a PID logic regulator and respective probes.
| RS /E-EV MZ Series | |
|---|---|
| RS 310/E-/EV MZ | 600/1200 - 3900 kW |
| RS 410/E-/EV MZ | 800/2000 - 4900 kW |
| RS 510/E-/EV MZ | 802/2200 - 5250 kW |
| RS 610/E-/EV MZ | 820/2400 - 6300 kW |
